ULTRA-SLIM PCB SSR RELAY SERIES 34.81 PINS-4 DC VOLTAGE VARIATIONS FROM 3.5 -72V

 Function and features:

Type 34.81 is a solid state relay for printed circuit mount, direct or via PCB socket.

Also for 35 mm rail mount via screw, screwless or push-in terminal sockets

Base sockets series-93.

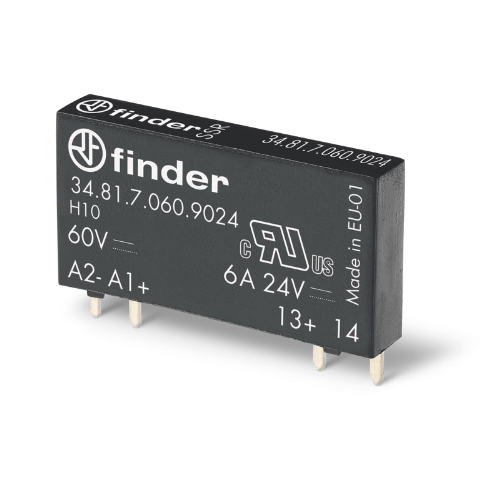

Available versions: 34.81.7.xxx.9024

6 A, 24 V DC output switching

34.81.7.xxx.8240

2 A, 240 V AC output switching

Zero crossing switching

34.81.7.xxx.7048

100 mA, 48 V DC output switching

PCB or 93 series sockets

34.81.7.xxx.7220

200 mA, 110/220 V DC output switching

PCB or 93 series sockets

Commercial description

Solid state relay for printed circuit mount, direct or via PCB socket. Also for 35 mm rail mount via screw, screwless or push-in terminal sockets.

Contact configuration: 1 NO (SPST-NO)

Dimensions: 15.6x5x28 mm

Electrical life: 60000 cycles

Supply: DC

Nominal voltage: 3.5 upto 72V

Rated contact voltage: 250 V AC

Rated current (contacts): 2A

Technical description

Sub-miniature PCB relays Solid State (SSR),

1 NO (SPST-NO), 2A - 240 V AC,

 DC input version,

rated power 0.06 W,

consumption 12 mA,

impedance 715 Ω,

ambient temperature from -20 to +50 °C

NOTE: PLEASE FEEL FREE TO SEND ANY INQUIRY ABOUT YOUR REQUIREMENTS.
