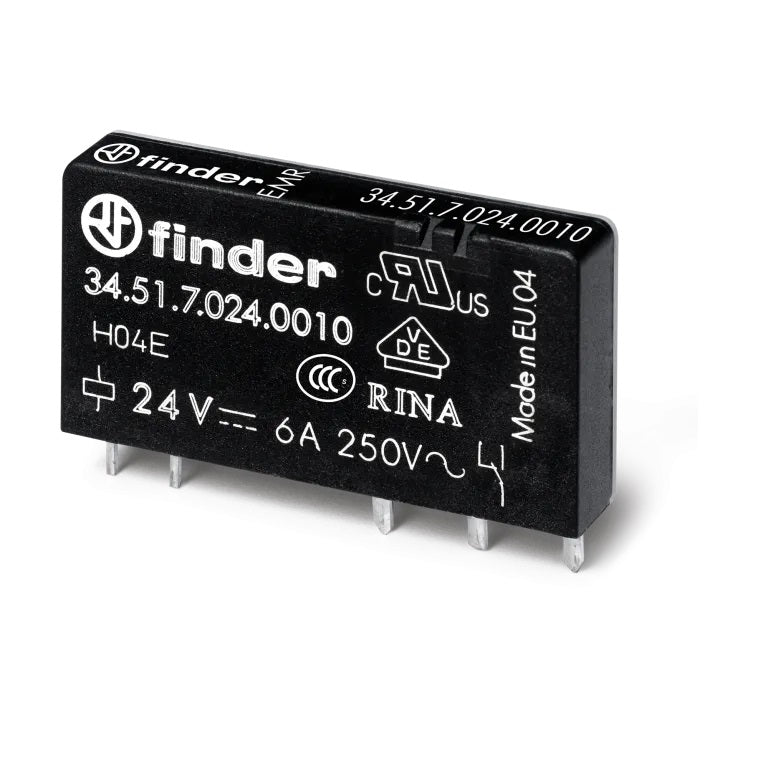

ULTRA-SLIM PCB RELAY SERIES 34.51 PINS-5

 Function and features:

Type 34.51 ultra-slim electromechanical PCB relays, 6 A, 5 mm width, low absorption coil and suitable for PCB mounting or socket mounting using the 93 Series sockets.

Available version 34.51-5010 with contact AgNi+AU.

Features include:

1 changeover contact or 1 normally open contact

Ultra-slim, 5mm wide

Sensitive DC coil – 170 mW (possibility of AC/DC power supply with 93 Series sockets)

UL Listing (relay/socket/jumper link)

Cadmium-free contacts

8/8 mm clearance/sliding distance

6 kV (1.2/50 μs) insulation between coil and contacts.

Commercial Description

Ultra-slim electromechanical PCB relay, 6 A, 5 mm width, low coil power and suitable for PCB mounting or socket mounting using the 93 Series sockets. Available version 34.51-5010 with contact AgNi+AU.

Contact configuration: 1 pole, CO (SPDT)

Dimensions: 5x15x28 mm

Electrical life: 60000 cycles

Insulation coil/contacts: 6 kV

Coil Supply: DC

Nominal voltage: 6 upto 60V

Rated contact voltage: 250 V AC

Rated current (contacts): 6A

Technical description

Sub-miniature PCB relays Electromechanical (EMR),

1 pole, CO (nPDT), 6 A, AgNi,

DC sensitive coil,

rated power 0.17 W,

resistance 19700 Ω,

consumption 3 mA,

must drop-out voltage 15% V,

option: Flux proof (RT II),

ambient temperature from -40 to +85 °C
