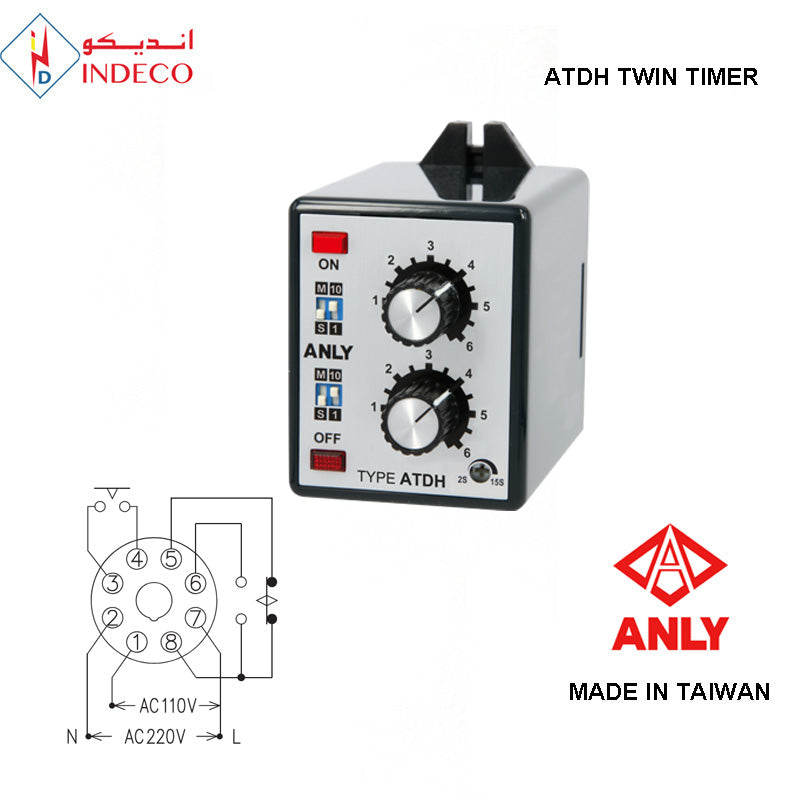

TWIN ANALOGUE TIMER FOR MISTING PUMP 8 PINS ROUND BASE 110Vac & 220Vac ATDH ANLY

 ANLY TWIN ANALOGUE TIMER FOR MISTING PUMP ATDH

GENERAL SPECIFICATIONS:

Operating Voltages: AC: 110V & 220V

AC frequency: 50 / 60 Hz

Load: 250VAC 5A (resistive load)

Power Consumption: Approx. 3VA

Weight: Approx. 235g

Size: 61mm X 49mm

Time range: 3mins up to 30hours

Functionality:

1. Customized CMOS IC for low power consumption, high operation stability and extreme timing accuracy

2. Independent adjustment for continuous ON-OFF operation and time

3. Separate pressure-release timing, adjustable from 2S-15S

4. Adjustable pressure-release time

5. 16 different time ranges available

6. 2 operating voltage in a single unit, AC110V and 220V

7. 5(A,B,C,D,E) timing series available

8. Each timing series has 4 time ranges, selectable via DIP switch
