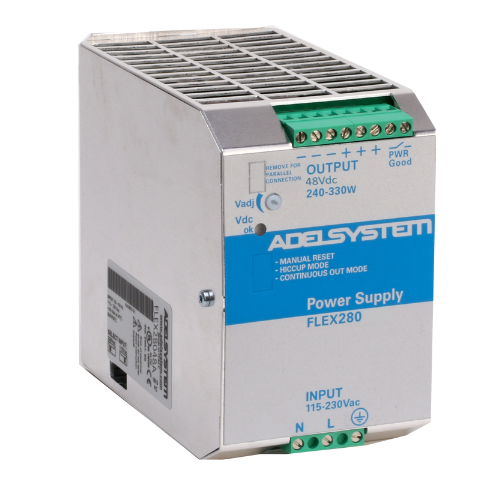

POWER SUPPLY 48V DC 7A MAX DIN RAIL MOUNTABLE ADFLEX28048A ADELSYSTEM

 General Specifications

ADFLEX28048A DIN RAIL MOUNTABLE POWER SUPPLY(48V/5A-7A)

 Brand: ADELSYSTEM

Origin: ITALY

INDOOR USE ONLY

Phase: Single

Nominal Input: 115 – 230Vac

Input Voltage range: On 115Vac Selection (90-135Vac)

  On 230Vac Selection (170-264Vac)

AC frequency: 47 – 63 Hz

Output: 48Vdc (240-330W)

Adjustment range (Vadj) 41Vdc to 55Vdc.

Power Consumption: 1058VA (Max at 40°C)

Installation Method: DIN Rail Mountable

Weight: 800grams approx.

Connecting Method: Screw Tight Terminals/ PIN LUGS / WIRE

Efficiency up to 91%

Temperature: Ambient Temperature operation -25 up to+70°C

Humidity: 95 % to 25 °C

Internal Fuse T 6.3A

External Fuse (recommended) 16A (MCB curve B)


PLEASE FEEL FREE TO CONTACT US FOR DIFFERENT VARIATIONS.

The Adel system offers a complete range of industrial power supply units dedicated to a whole range of different applications. This is a revolutionary line designed to provide uninterruptible power, whatever the system conditions are, through a sophisticated and completely automatic management of any type of industrial electrical panel.


- Easy to install
- Compact size
- Power Supply

🔥 500 pieces sold in past 3 months

Extensive Product Range

Compliance & Quality

24/7 Service

 General Specifications

ADFLEX28048A DIN RAIL MOUNTABLE POWER SUPPLY(48V/5A-7A)

 Brand: ADELSYSTEM

Origin: ITALY

INDOOR USE ONLY

Phase: Single

Nominal Input: 115 – 230Vac

Input Voltage range: On 115Vac Selection (90-135Vac)

  On 230Vac Selection (170-264Vac)

AC frequency: 47 – 63 Hz

Output: 48Vdc (240-330W)

Adjustment range (Vadj) 41Vdc to 55Vdc.

Power Consumption: 1058VA (Max at 40°C)

Installation Method: DIN Rail Mountable

Weight: 800grams approx.

Connecting Method: Screw Tight Terminals/ PIN LUGS / WIRE

Efficiency up to 91%

Temperature: Ambient Temperature operation -25 up to+70°C

Humidity: 95 % to 25 °C

Internal Fuse T 6.3A

External Fuse (recommended) 16A (MCB curve B)


PLEASE FEEL FREE TO CONTACT US FOR DIFFERENT VARIATIONS.

The Adel system offers a complete range of industrial power supply units dedicated to a whole range of different applications. This is a revolutionary line designed to provide uninterruptible power, whatever the system conditions are, through a sophisticated and completely automatic management of any type of industrial electrical panel.


- Easy to install
- Compact size
- Power Supply
