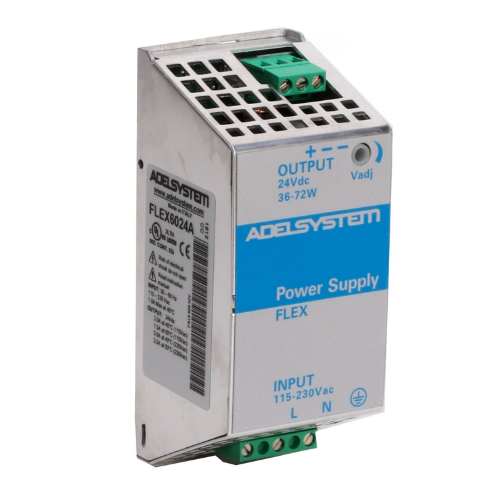

POWER SUPPLY 24V DC 3A MAX DIN RAIL MOUNTABLE ADFLEX6024A ADELSYSTEM

 General Specifications

ADFLEX6024A DIN RAIL MOUNTABLE POWER SUPPLY (24V/1.5A-3A)

Brand: ADELSYSTEM

Origin: ITALY

INDOOR USE ONLY

Phase: Single

Nominal Input: 115 – 230Vac

Input Voltage range: 90 to 264Vac

AC frequency: 47 – 63 Hz

Output: 24Vdc (36-72W)

Adjustment range (Vadj) 22Vdc to 27Vdc.

Power Consumption: 230VA (Max at 40°C)

Installation Method: DIN Rail Mountable

Weight: 300grams approx.

Connecting Method: Screw Tight Terminals/ PIN LUGS / WIRE

Efficiency up to 85%

Temperature: Ambient Temperature operation -25 up to+60°C

Humidity: 95 % to 25 °C

Internal Fuse T 4A

External Fuse (recommended) 6A (MCB curve B)

PLEASE FEEL FREE TO CONTACT US FOR DIFFERENT VARIATIONS.

The Adel system offers a complete range of industrial power supply units dedicated to a whole range of different applications. This is a revolutionary line designed to provide uninterruptible power, whatever the system conditions are, through a sophisticated and completely automatic management of any type of industrial electrical panel.

- Easy to install
- Compact size
- Power Supply

🔥 500 pieces sold in past 3 months

Extensive Product Range

Compliance & Quality

24/7 Service

 General Specifications

ADFLEX6024A DIN RAIL MOUNTABLE POWER SUPPLY (24V/1.5A-3A)

Brand: ADELSYSTEM

Origin: ITALY

INDOOR USE ONLY

Phase: Single

Nominal Input: 115 – 230Vac

Input Voltage range: 90 to 264Vac

AC frequency: 47 – 63 Hz

Output: 24Vdc (36-72W)

Adjustment range (Vadj) 22Vdc to 27Vdc.

Power Consumption: 230VA (Max at 40°C)

Installation Method: DIN Rail Mountable

Weight: 300grams approx.

Connecting Method: Screw Tight Terminals/ PIN LUGS / WIRE

Efficiency up to 85%

Temperature: Ambient Temperature operation -25 up to+60°C

Humidity: 95 % to 25 °C

Internal Fuse T 4A

External Fuse (recommended) 6A (MCB curve B)

PLEASE FEEL FREE TO CONTACT US FOR DIFFERENT VARIATIONS.

The Adel system offers a complete range of industrial power supply units dedicated to a whole range of different applications. This is a revolutionary line designed to provide uninterruptible power, whatever the system conditions are, through a sophisticated and completely automatic management of any type of industrial electrical panel.

- Easy to install
- Compact size
- Power Supply
