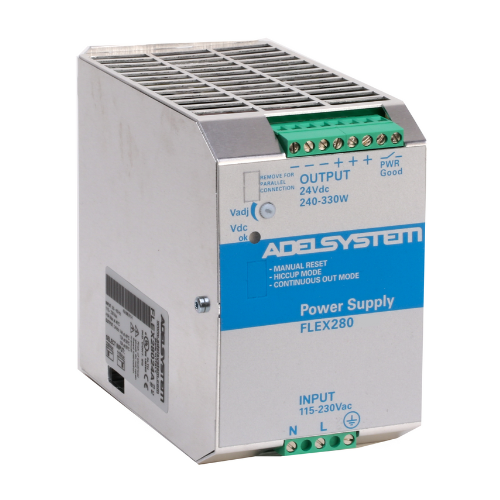

POWER SUPPLY 24V DC 14A MAX DIN RAIL MOUNTABLE ADFLEX28024A ADELSYSTEM

General Specifications

ADFLEX28024A DIN RAIL MOUNTABLE POWER SUPPLY(24V/10A-14A)

Brand: ADELSYSTEM

Origin: ITALY

INDOOR USE ONLY

Phase: Single

Nominal Input: 115 – 230Vac

Input Voltage range: On 115Vac Selection (90-135Vac)

  On 230Vac Selection (170-264Vac)

AC frequency: 47 – 63 Hz

Output: 24Vdc (240-330W)

Adjustment range (Vadj) 22Vdc to 27Vdc.

Power Consumption: 1100VA (Max at 40°C)

Installation Method: DIN Rail Mountable

Weight: 850grams approx.

Connecting Method: Screw Tight Terminals/ PIN LUGS / WIRE

Efficiency up to 89%

Temperature: Ambient Temperature operation -25 up to+70°C

Humidity: 95 % to 25 °C

Internal Fuse T 6.3A

External Fuse (recommended) 16A (MCB curve B)

PLEASE FEEL FREE TO CONTACT US FOR DIFFERENT VARIATIONS.

The Adel system offers a complete range of industrial power supply units dedicated to a whole range of different applications. This is a revolutionary line designed to provide uninterruptible power, whatever the system conditions are, through a sophisticated and completely automatic management of any type of industrial electrical panel.

- Easy to install
- Compact size
- Power Supply
