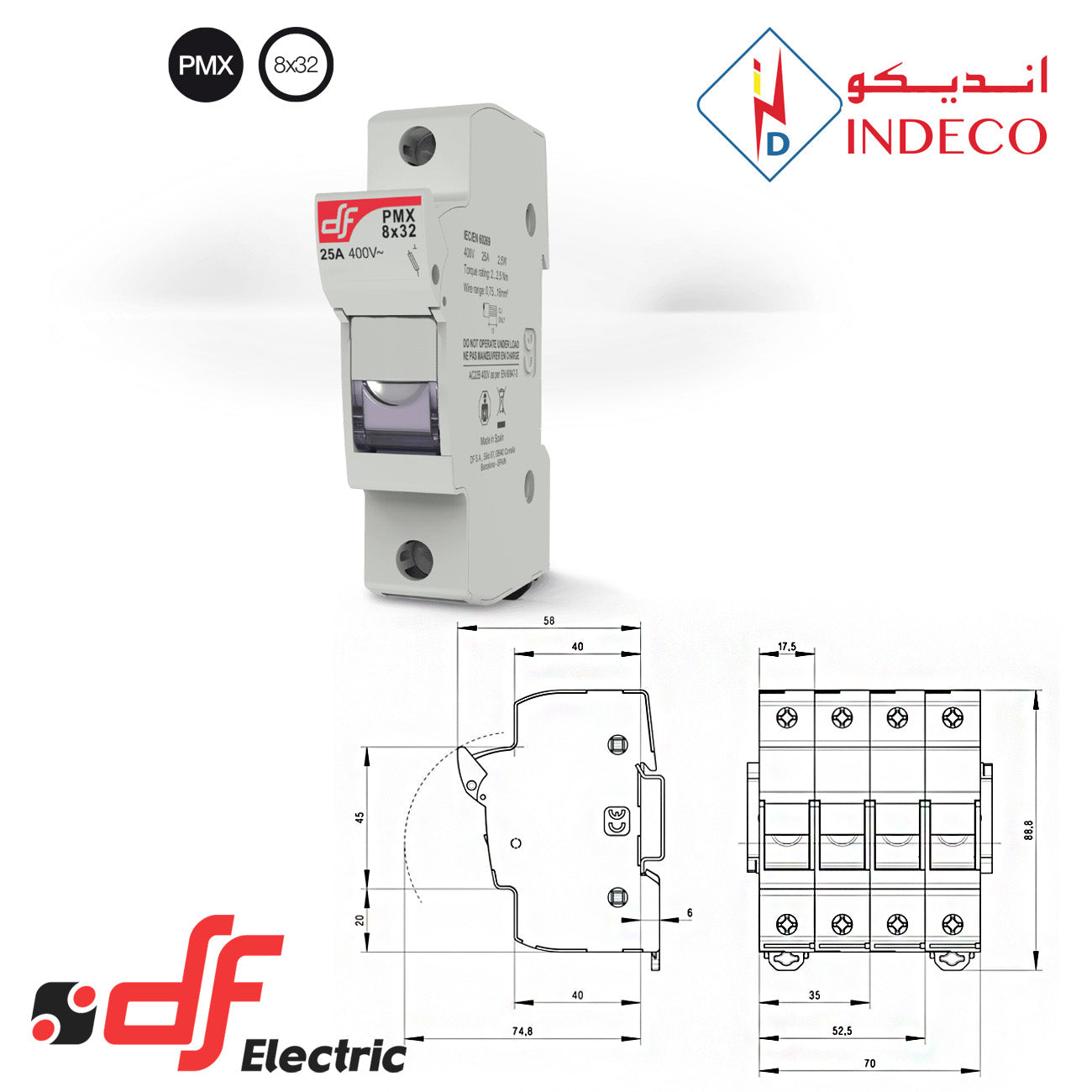

PMX FUSE CARRIER 8X32mm DF ELECTRIC

 DF ELECTRIC (MADE IN SPAIN)

DF is specialized in the manufacturing of fuse links & fuse holders since 1987.

Technical data

PMX FUSE CARRIER

Size: 8×32mm

Rated current 25A

Rated voltage 400V AC/DC

Rated power dissipation 2,5W

Maximum power dissipation 3W

Power dissipation per pole 80% In    0,16W, 100% In    0,25W

Utilization category (EN 60947-3) 400V   AC-22B

Pollution degree 3

Protection index * IP20

Rated impulse withstand voltage 6kV U imp

Ambient temperature of service -40°C ... 70°C

Storage temperature -50°C ... 80°C

NOTE: PLEASE FEEL FREE TO SEND ANY INQUIRY ABOUT YOUR REQUIRMENTS.
