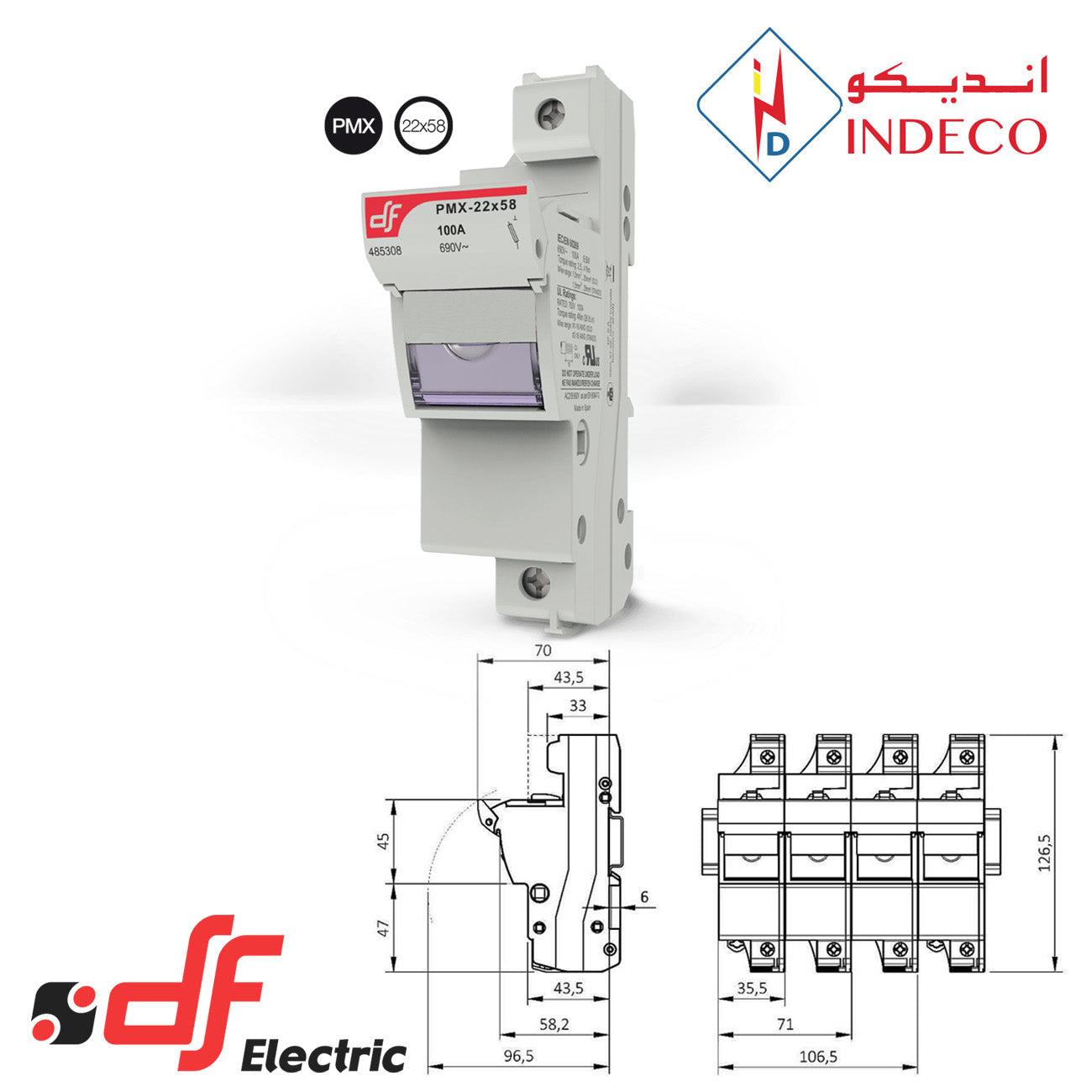

PMX FUSE CARRIER 22X58mm DF ELECTRIC

DF ELECTRIC (MADE IN SPAIN)

DF is specialized in the manufacturing of fuse links & fuse holders since 1987.

Technical data

PMX FUSE CARRIER

Size: 22×58mm

Rated current * 100A

Rated voltage 690V AC | 750V DC

Rated power dissipation 9,5W

Maximum power dissipation 12W

Power dissipation per pole 80% In    1,38W

Utilization category (EN 60947-3) 690V   AC-21B

Pollution degree 3

Protection index ** IP20

Rated impulse withstand voltage 6kV U imp

Ambient temperature of service -40°C ... 70°C

Storage temperature -50°C ... 80°C

VARIATIONS

1Pole 485320

2Poles 485322

3Poles 485323

4Poles 485325

NOTE: PLEASE FEEL FREE TO SEND ANY INQUIRY ABOUT YOUR REQUIREMENTS.
