DF ELECTRIC (MADE IN SPAIN)
DF is specialized in the manufacturing of fuse links & fuse holders since 1987.
Technical data

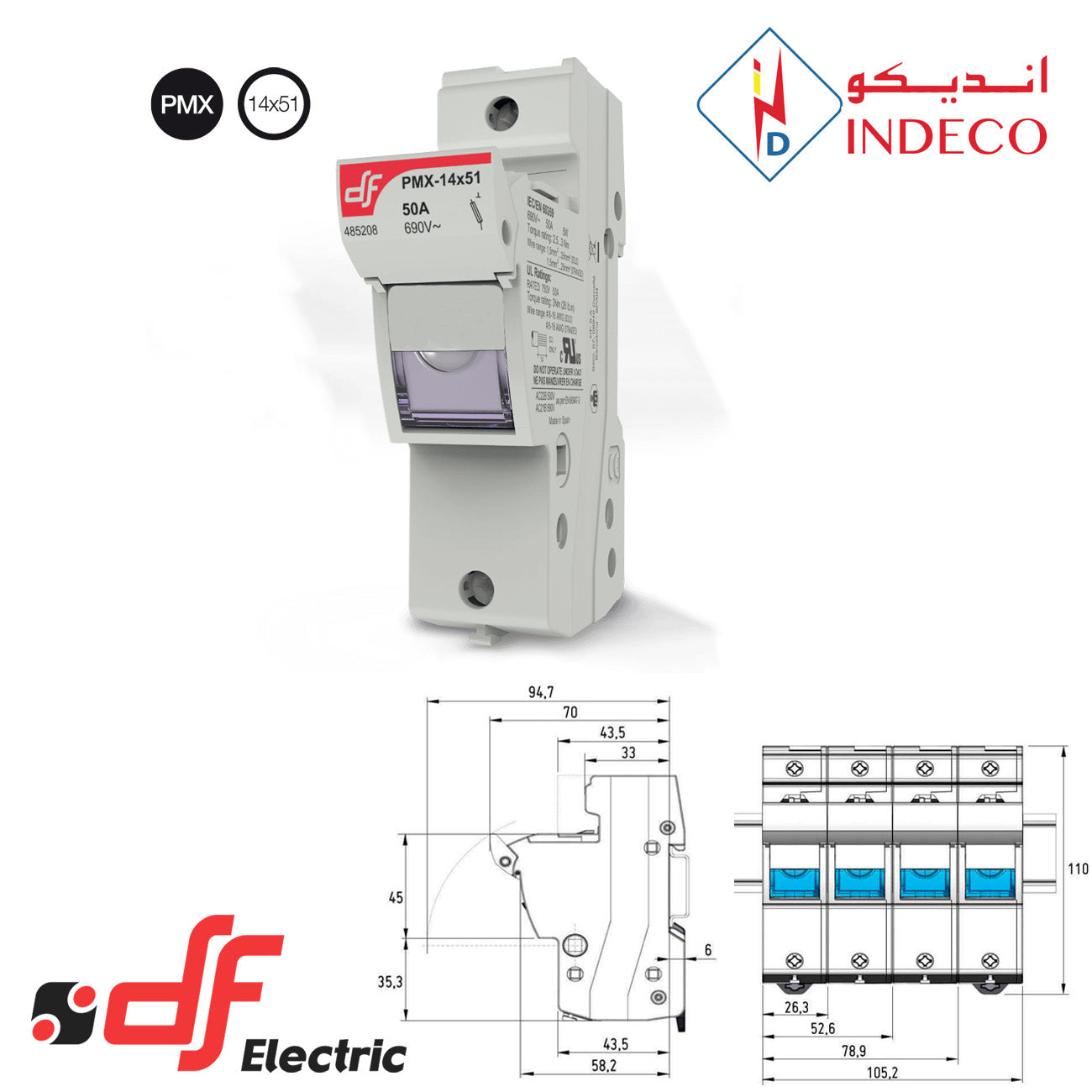

PMX FUSE CARRIER
Size: 14×51mm
Rated current 50A
Rated voltage 690V AC | 750V DC
Rated power dissipation 5W
Maximum power dissipation 6W
Power dissipation per pole 80% In 0,52W
Utilization category (EN 60947-3) 690V AC-21B
Pollution degree 3
Protection index * IP20
Rated impulse withstand voltage 6kV U imp
Ambient temperature of service -40°C ... 70°C
Storage temperature -50°C ... 80°C
NOTE: PLEASE FEEL FREE TO SEND ANY INQUIRY ABOUT YOUR REQUIRMENTS.
