PMX FUSE CARRIER 14X51mm DF ELECTRIC

DF ELECTRIC (MADE IN SPAIN)

DF is specialized in the manufacturing of fuse links & fuse holders since 1987

Technical data

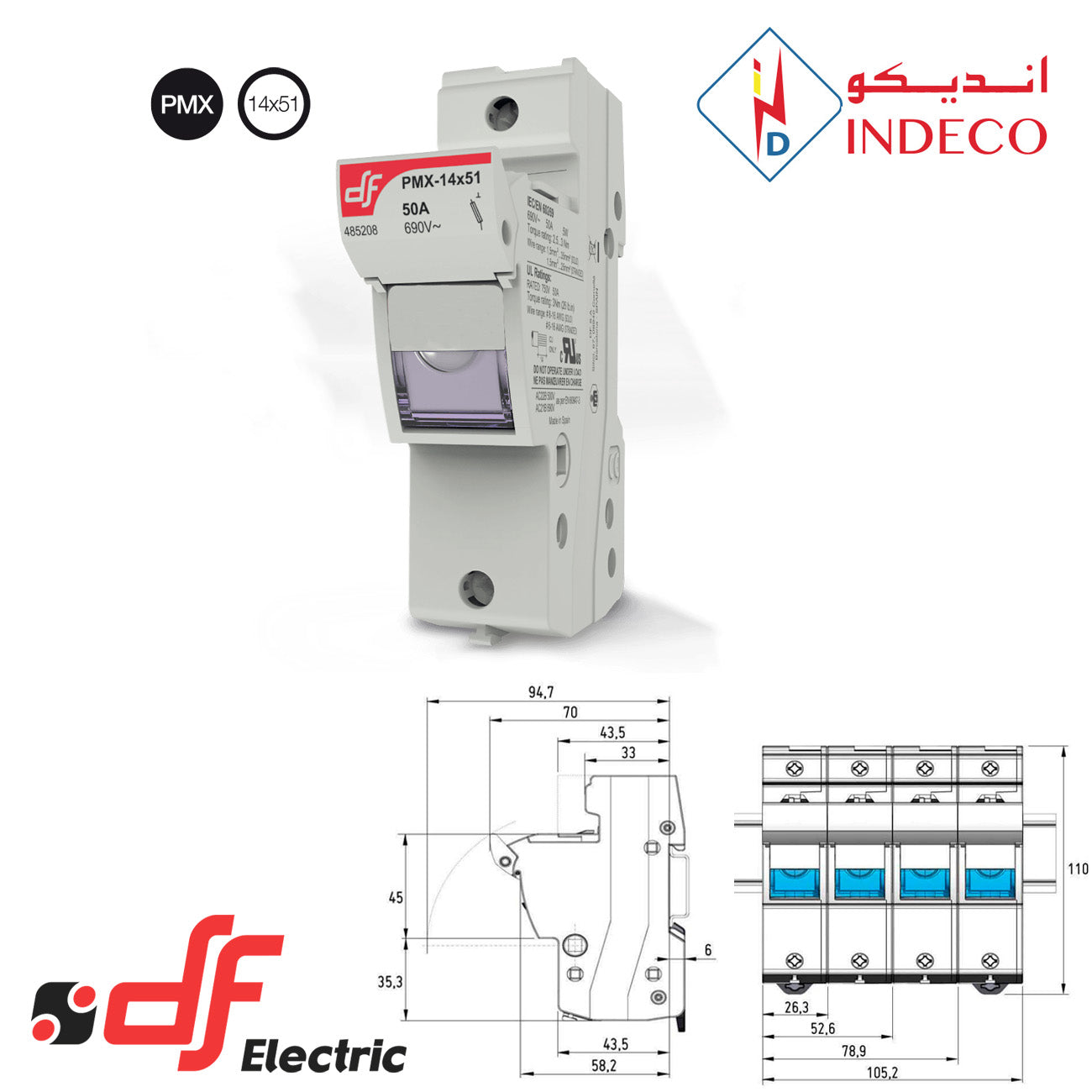

PMX FUSE CARRIER

Size: 14×51mm

Rated current 50A

Rated voltage 690V AC | 750V DC

Rated power dissipation 5W

Maximum power dissipation 6W

Power dissipation per pole 80% In    0,52W

Utilization category (EN 60947-3) 690V   AC-21B

Pollution degree 3

Protection index * IP20

Rated impulse withstand voltage 6kV U imp

Ambient temperature of service -40°C ... 70°C

Storage temperature -50°C ... 80°C

VARIATIONS

1Pole 485201

2 Poles 485204

3 Poles 485205

4 Poles 485207

NOTE: PLEASE FEEL FREE TO SEND ANY INQUIRY ABOUT YOUR REQUIREMENTS.
