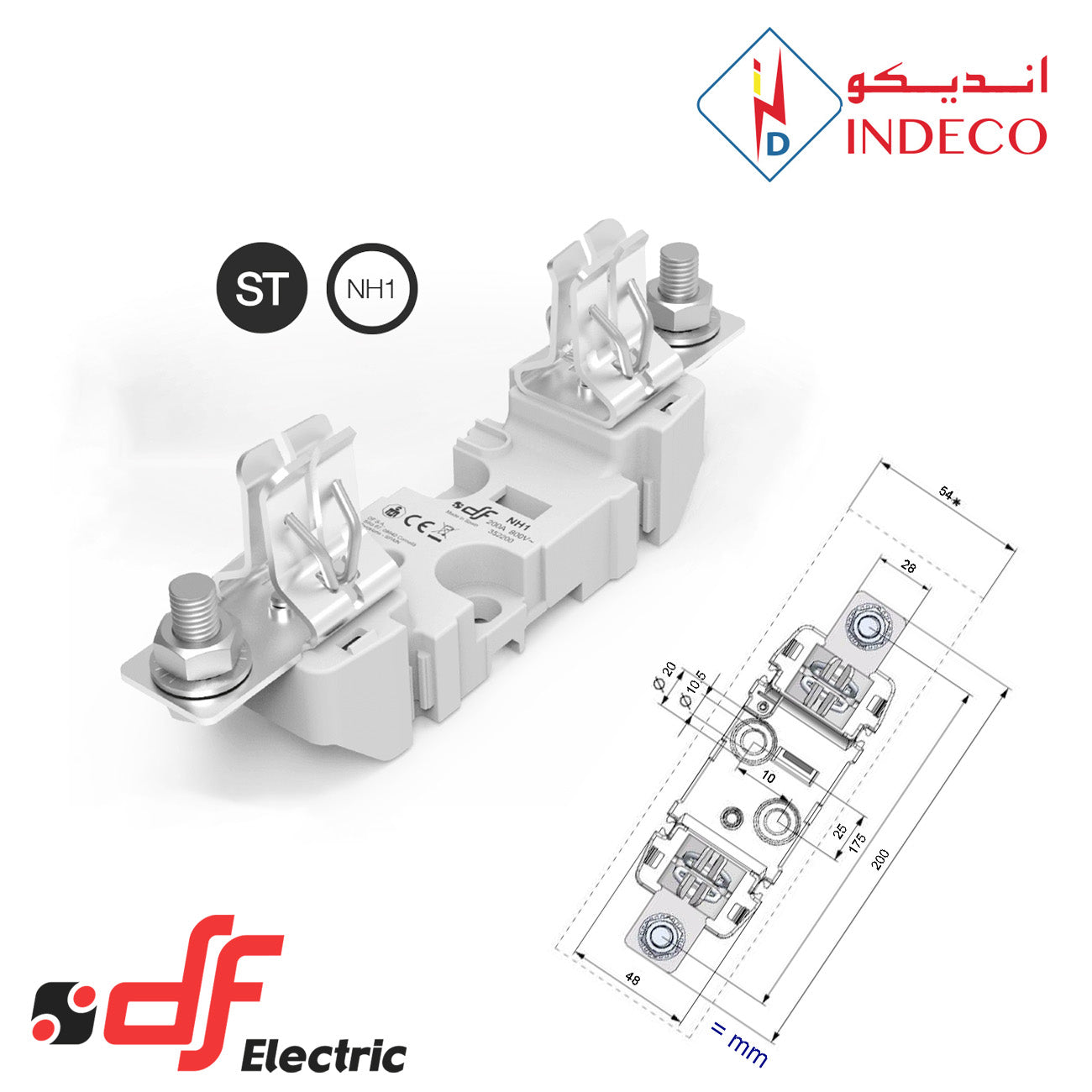

NH1 ST FUSE BASE 690V-800V DF ELECTRIC

 DF ELECTRIC (MADE IN SPAIN)

DF is specialized in the manufacturing of fuse links & fuse holders since 1987.

Technical data

NH1 BASE

Item No: 352300

Contacts: Silver plated copper

Body: Thermoplastic, high resistance to temperature

Mount: DIN RAIL + SCREW

Weight: 320gr

Flammability: (UL94) V0

Glow wire test: (IEC-60695) 960ºC

Tracking resistance: (IEC-112) CTI > 600V

Accessory terminals: Tin plated brass, Zinc plated steel screws

Rated current: 160A

Rated voltage: 690V/800V

Power dissipation: 12W / 25W max (according to IEC60269-2)

Protection index: IP00 / IP20

Ambient temperature of service: -20°C ... 80°C

Storage temperature: -40°C ... 80°C

NOTE: PLEASE FEEL FREE TO SEND ANY INQUIRY ABOUT YOUR REQUIRMENTS.
