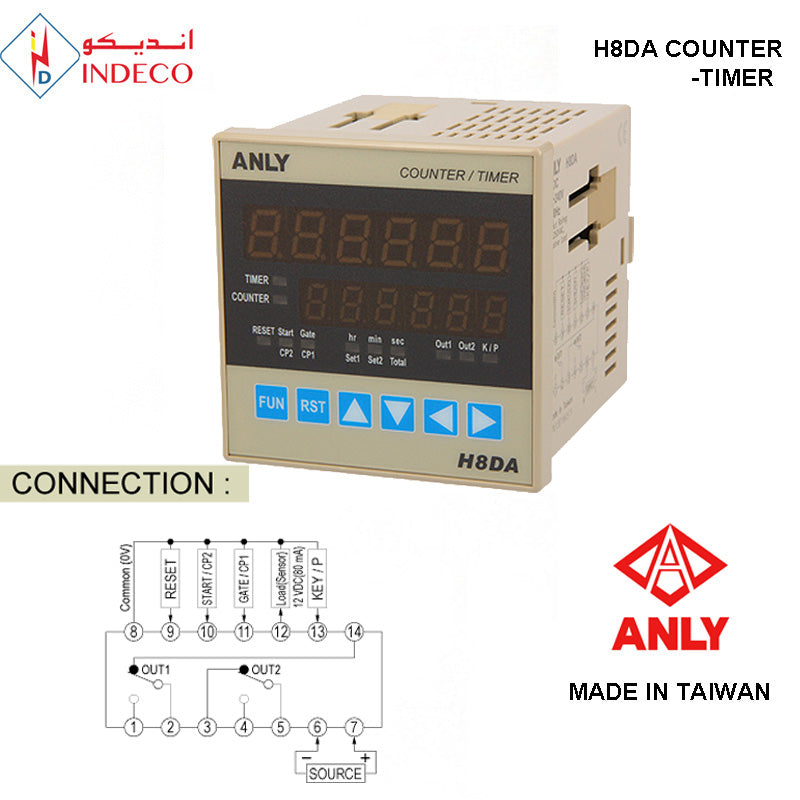

MULTI FUNCTION DIGITAL TIMER & COUNTER H8DA ANLY

 ANLY TIMER/COUNTER H8DA

GENERAL SPECIFICATIONS:

Operating Voltages: AC/DC: 100 to 240V

AC frequency: 50 / 60 Hz

Load: 250VAC 5A (resistive load)

Counting Speed: MAX 30, 1k, 5k or 10k cps

Power Consumption: Approx. 3.5VA

Weight: Approx. 260g

Size: 72mm X 72mm

Functionality:

1. Counter or Timer function selectable

2. Scroll-through menu for all parameters

3. Proximity and photoelectric switches compatible

4. High-speed response allows 10k counts per second

5. Online change of set value possible

6. 4 levels of key protection provided

7. 3 user selectable mode : Count Up, Count Down and Count Up/Down

8. Memory function available

9. CE certified

NOTE: PLEASE FEEL FREE TO SEND ANY INQUIRY ABOUT YOUR REQUIRMENTS.
