MULTI FUNCTION ANALOGUE TIMER 1sec TO 600Hr OPERATING CURRENT 100-240V AC-DC 8PINS AMY-N2 ANLY

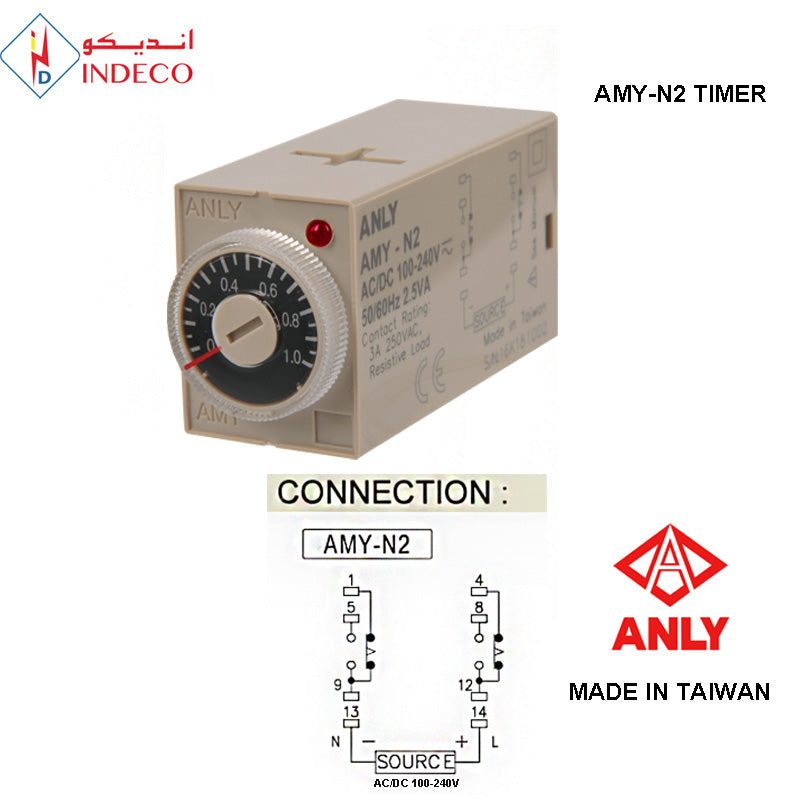

 ANLY ANALOGUE TIMER AMY-N2

GENERAL SPECIFICATIONS:

Operating Voltages: AC/DC: 24 to 240V

AC frequency: 50 / 60 Hz

Load: 250VAC 5A (resistive load)

Timer Range: 1sec up to 600hours (8 Ranges)

Power Consumption: Approx. 2.7VA

Weight: Approx. 45g

Size: 28.6mm X 22.3mm

Base Socket: 8 Pins

Output Contacts: 2 x SPDT

Functionality:

1. 8 field-selectable time range, from 1 second to 600 hour

2. Customized CMOS  IC for low power consumption, high operation stability and extreme timing accuracy

3. SMD components for miniature size

4. Flush mount with Type Y-20 adapter and surface mount without adapter

5. 2 poles or 4 poles output contacts available

6. MY relay socket compatible

7. CE certified

NOTE: PLEASE FEEL FREE TO SEND ANY INQUIRY ABOUT YOUR REQUIREMENTS.
