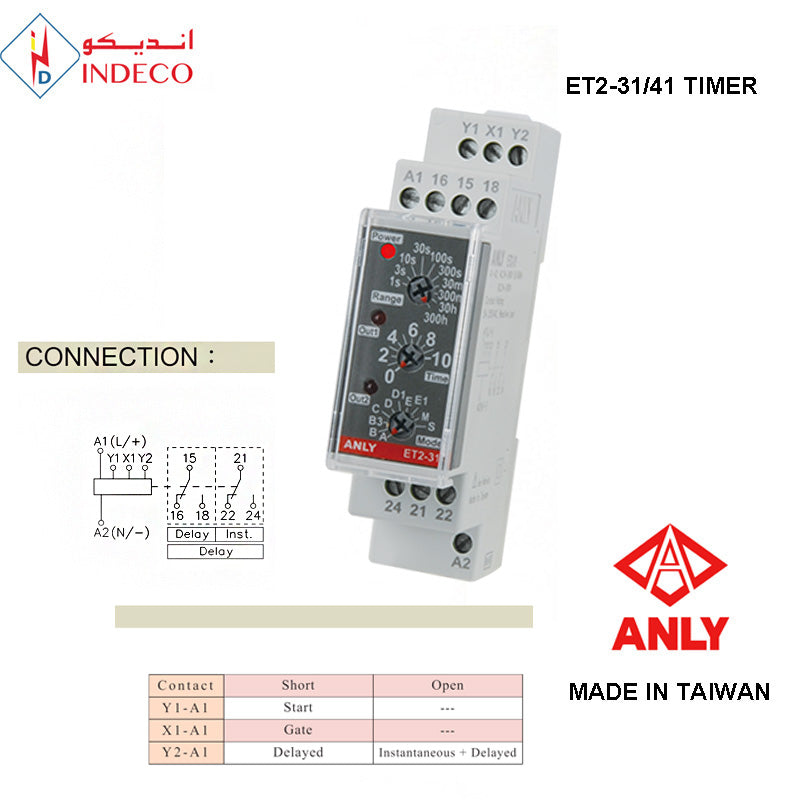

MULTI FUNCTION ANALOGUE TIMER 1sec TO 300Hr OPERATING CURRENT 24-240V AC-DC ET2-31.41 ANLY

ANLY ANALOGUE TIMER ET2-31/41

GENERAL SPECIFICATIONS:

Operating Voltages: AC/DC: 24 to 240V

AC frequency: 50 / 60 Hz

Load: 250VAC 5A (resistive load)

Timer Range: 1sec up to 300hours (10 Ranges)

Power Consumption: Approx. 3VA

Weight: Approx. 90g

Size: 90.6mm X 22.5mm X 63.6mm

Functionality:

1. Wide operating voltage range in a single unit, AC/DC 24V-240V

2. 10 field-selectable output modes for various applications

3. 10 field-selectable time range, from 1 second to 300 hour

4. Includes 2 SPDT output contacts

5. 22.5 mm thin body design

6. X1, Y1, Y2 contact for mode control

NOTE: PLEASE FEEL FREE TO SEND ANY INQUIRY ABOUT YOUR REQUIREMENTS.
