MULTI FUNCTION ANALOGUE TIMER 1sec TO 100Hr OPERATING CURRENT 12-240V AC-DC DIN RAIL MOUNT H3D-M ANLY

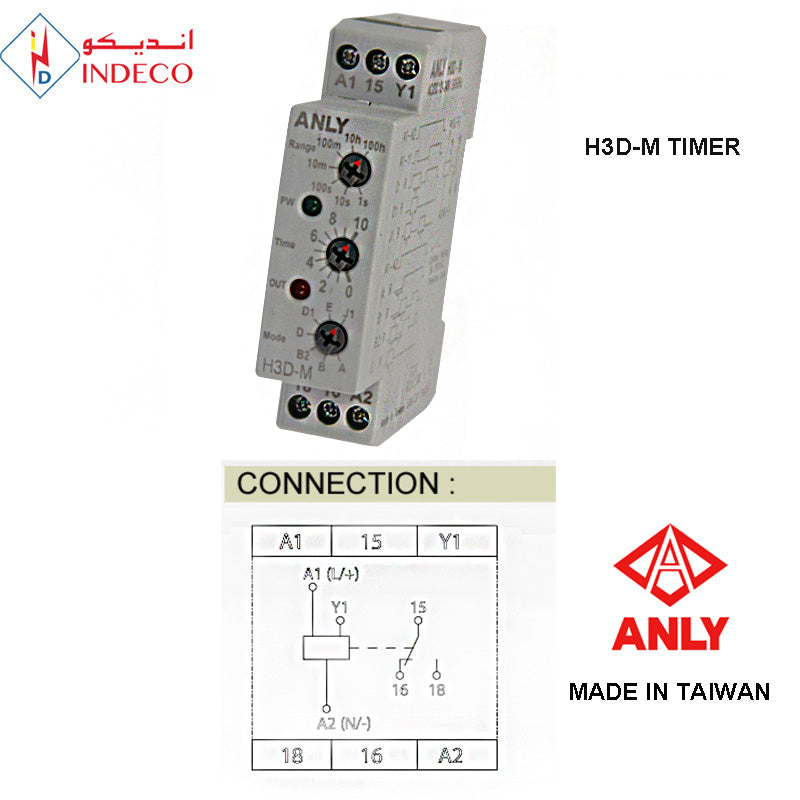

 ANLY ANALOGUE TIMER H3D-M

GENERAL SPECIFICATIONS:

Operating Voltages: DC: 12 to 240V /AC: 24V to 240V

AC frequency: 50 / 60 Hz

Load: 250VAC 8A (resistive load)

Timer Range: 1sec up to 100hours (7 ranges)

Power Consumption: Approx. 1.9VA

Weight: Approx. 100g

Size: 71.2mm X 17.5mm X 60mm

Output Contacts: SPDT

Functionality:

1. Wide operating voltage range, AC/DC 12V~240V

2. 7 output modes :

3. On-delay Control contact OFF-delay Interval

4. Trailing edge interval Flasher starting with ON Flasher starting with OFF Single shot

5. 7 time range, from 1 second to 100 hour

6. 17.5 mm thin body design

7. UL, C-UL recognized and CE certified

NOTE: PLEASE FEEL FREE TO SEND ANY INQUIRY ABOUT YOUR REQUIREMENTS.
