MULTI FUNCTION ANALOGUE TIMER 1.2sec TO 300Hr OPERATING CURRENT 24-240V AC-DC 8PINS H3C-R ANLY

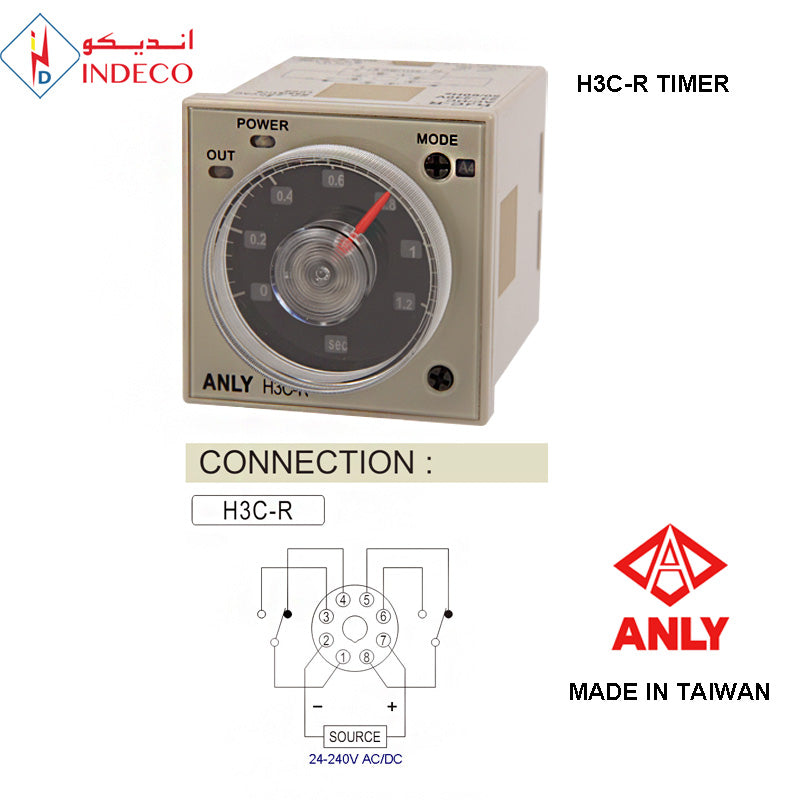

ANLY ANALOGUE TIMER H3C-R

GENERAL SPECIFICATIONS:

Operating Voltages: AC/DC: 24 to 240V

AC frequency: 50 / 60 Hz

Load: 250VAC 5A (resistive load)

Timer Range: 1.2sec up to 300hours

Power Consumption: Approx. 3VA

Weight: Approx. 100g

Size: 45mm X 45mm

Base Socket: Round Type 8 Pins

Output Contacts: 2 x SPDT

Functionality:

1. Wide operating voltage range in a single unit, AC/DC 24V-240V

2. 8 field-selectable output modes for various applications

3. 300 hour

4. Includes 2C output contacts, instantaneous output contact, flicker and interval modes

5. Short body design, about 68 mm

6. Adapter Y-57 for different flush mount

7. UL, C-UL recognized and CE certified


NOTE: PLEASE FEEL FREE TO SEND ANY INQUIRY ABOUT YOUR REQUIREMENTS.
