MECHANICAL THERMOSTAT NORMALLY OPEN FOR FAN -10 TO +80 DEGREE TTEC-200

ARIELTECH (Made in Canada)

The TTEC series are thermostat controllers used to regulate the temperature inside industrial control panels or cabinets and control cabinet accessories. The TTEC series control fans, heaters, and switch loads.

GENERAL SPECIFICATIONS:

Type: TTEC-200

Environmental: Indoor

Function: Normally Open

Terminal Operated: Between 23 & 24

VDE Rating: 250 VAC, 14 A, 50 Hz

UL Rating: 125 VAC, 15 A, 60 Hz

Setting Temperature: -10 to +80 °C (+14 to 176 °F)

Weight: 50 gram / 0.11 lb

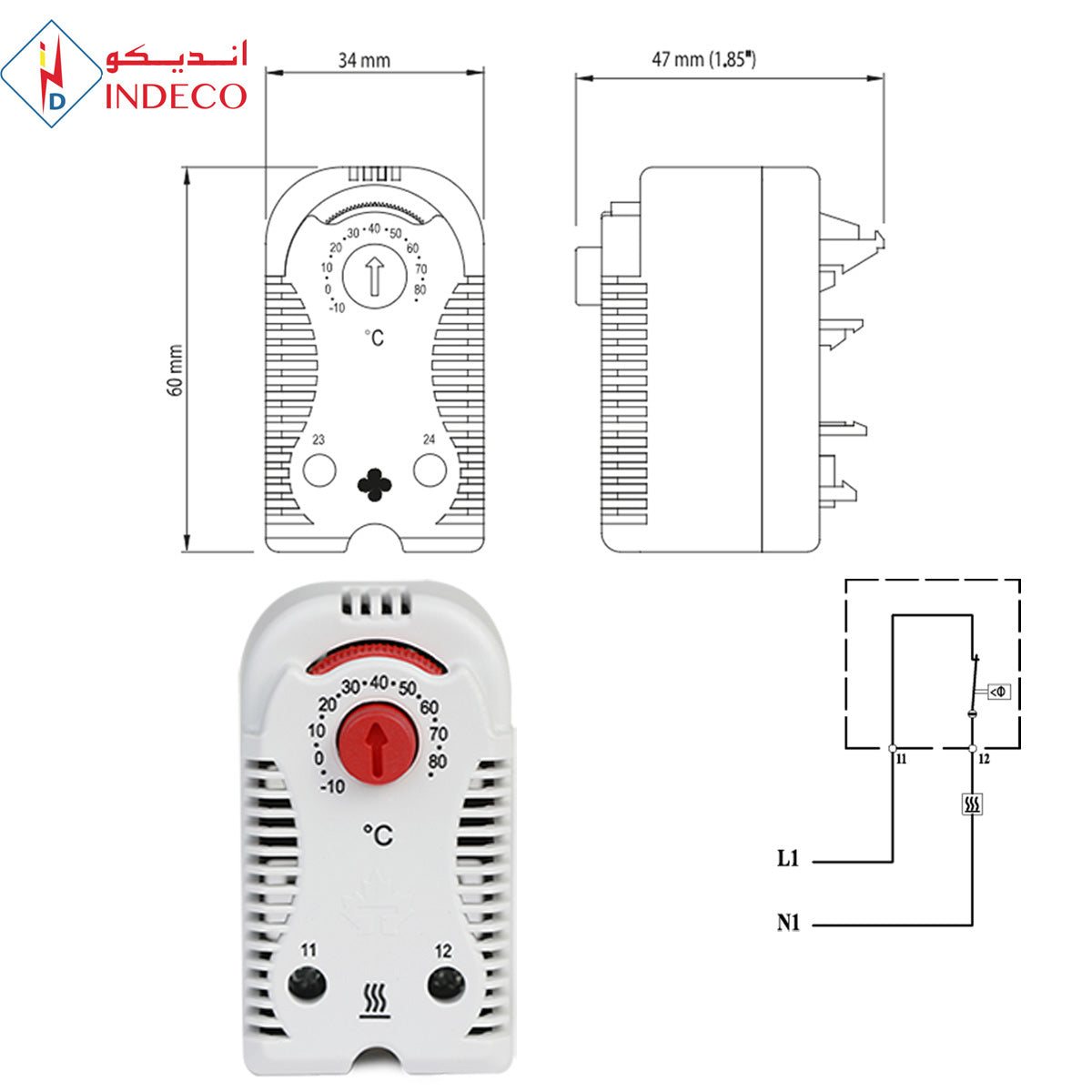

Dimensions: 60 mm X 34 mm X 47 mm (2.36″ X 1.34″ X 1.85″)

Mounting: Rail 35 mm according to EN 50022

Mounting: Rail 32 mm according to EN 50035

Mounting: Rail 15 mm according to EN 50045

NOTE: PLEASE FEEL FREE TO SEND ANY INQUIRY ABOUT YOUR REQUIREMENTS.
