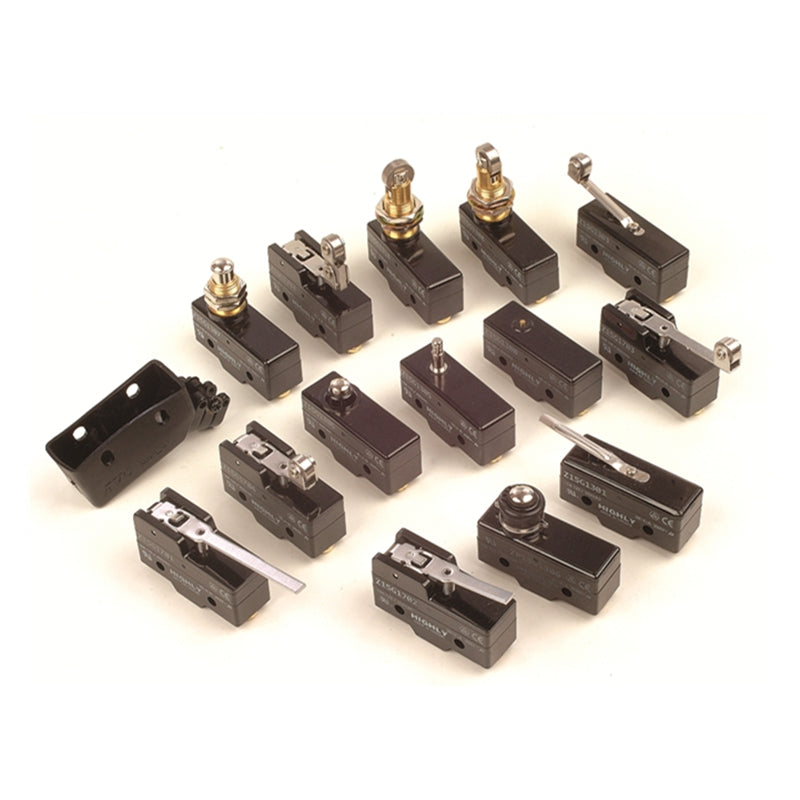

LIMIT SWITCH Z-SERIES

GENERAL SPECIFICATIONS:



Electrical Characteristics:

Rating: 12A 250/125VAC & 0.5A 250/125VDC

Insulating Resistance 100MΩ Min (at 500 VDC)

Dielectric Strength AC 1000V (50/60 Hz for 1 minute)

Contact Resistance 15mΩ Max. (Initial)



Mechanical Characteristics:

Operating Frequency: Mechanical 100 operations/minute max.

Electrical: 20 operations/minute max.

Operating Speed: 0.5mm to 500mm/s (pin plunger models)

Vibration: 10 to 55Hz, 1.5 mm double amplitude

Operating Life Electrical:           100,000 cycles.

Operating Life Mechanical: 1,000,000 cycles.

Climatic Characteristics:



Degree of Protection: IP40 (Excluding the terminals)

Operating Temperature: -0˚C ~ +55˚C

Operating Humidity: 95% max. (for 5°C to 35°C)



Features:

1.    High precision basic switces in a variety of styles

2.    Wide margins of operating conditions increase the operating speed range

3.    Available for general purpose



Applications:

Automotive Door Latch, Steamer, Telephone, Air Conditioner, Humidifier, Alarm, Security Device, Mixer & Chopper, Solder Gun, Neon Phone, Fax Machine, Joystick, Water Pump, Money Sorter, Food Processor, Electric Knife, Juice Maker.



NOTE: PLEASE FEEL FREE TO SEND ANY INQUIRY ABOUT YOUR REQUIREMENTS.
