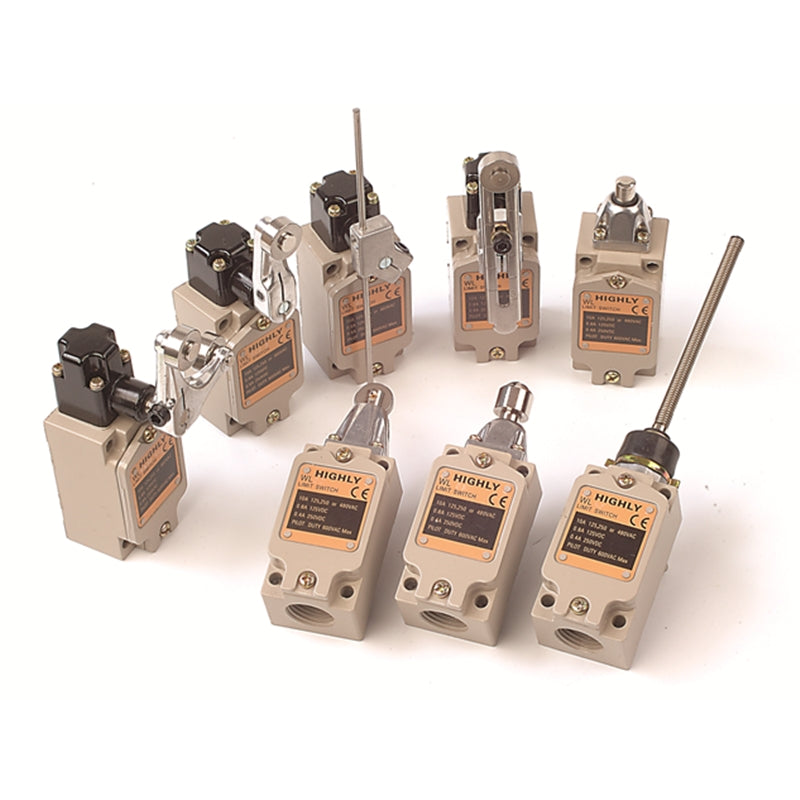

LIMIT SWITCH WL-SERIES

GENERAL SPECIFICATIONS:

Electrical Characteristics:

Rating: 10A 125VAC or 250VAC

Insulating Resistance: 100MΩ Min (at 500 VDC

Dielectric Strength: AC 1000V (50/60 Hz for

Contact Resistance: 25mΩ Max. (Initial)

Mechanical Characteristics:

Operating Frequency Mechanical: max. 120 operations/minute.

Operating Frequency Electrical: max. 30 operations/minute.

Operating Speed: 0.5mm to 500mm/s (pin plunger models)

Vibration: 10 to 55Hz, 1.5 mm double amplitude

Operating Life Electrical: 100,000 cycles.

Mechanical:            1,000,000 cycles.

Climatic Characteristics:

Degree of Protection: IP40 (Excluding the terminals)

Operating Temperature: -0˚C ~ +55˚C

Operating Humidity: 95% max. (for 5°C to 35°C)

FEATURES:

1.     High precision and metal die-casting body.

2.     Easy to wire connection construction

3.     High mechanical strength

4.     Dust-proof construction

5.     CCC approval.

NOTE: PLEASE FEEL FREE TO SEND ANY INQUIRY ABOUT YOUR REQUIRMENTS.
