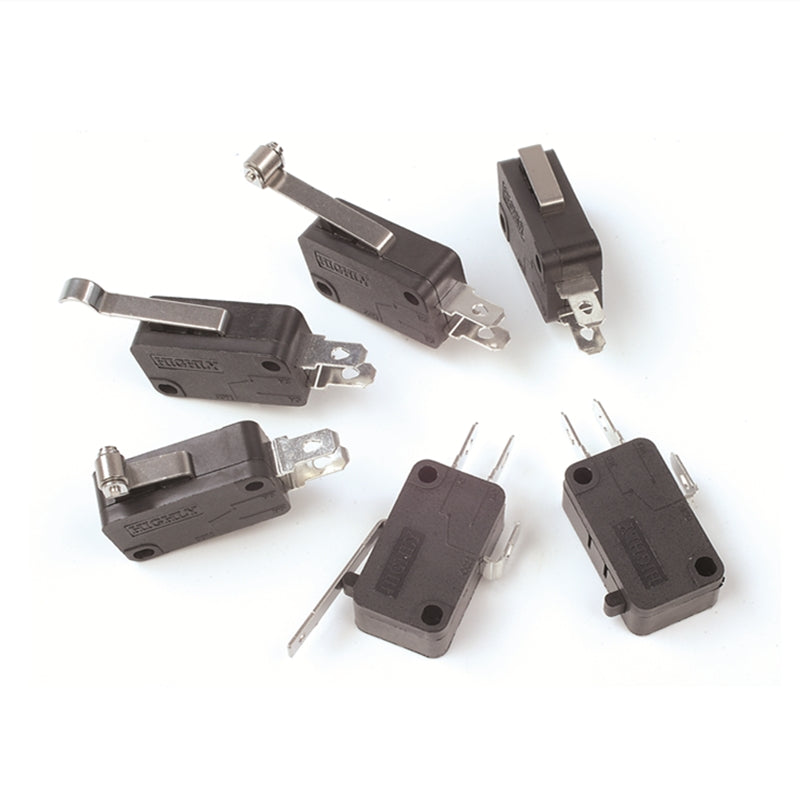

LIMIT SWITCH VS-SERIES

GENERAL SPECIFICATIONS:

Electrical Characteristics:

Rating: 10A 250/125VAC, UL 61058-1, GB14048.5 / 3A 24 VDC,UL61058-1

Insulating Resistance: 100MΩ Min (at 500 VDC)

Dielectric Strength: AC 1000V (50/60 Hz for 1 minute)

Contact Resistance: 30mΩ Max. (Initial)

Mechanical Characteristics:

Operating Frequency: Mechanical:max. 120 operations/minute.

Electrical: max. 30 operations/minute.

Operating Speed: 0.5mm to 500mm/s (pin plunger models)

Vibration: 10 to 55Hz, 1.5 mm double amplitude

Operating Life Electrical: 100,000 cycles.

Mechanical:            1,000,000 cycles.

Climatic Characteristics:

Degree of Protection: IP40 (Excluding the terminals)

Operating Temperature: -0˚C ~ +55˚C

Operating Humidity: 95% max. (for 5°C to 35°C)

Features:

Reliability is excellent.

It’s having long life and more operating force can be applied such as lightly force.

Good feeling and more levers are applied.

Applications:

Joystick, TV game , Time recorder , Air conditioner , Food processor, Juice maker , Alarm , Mixer , Shredder machine , etc.
