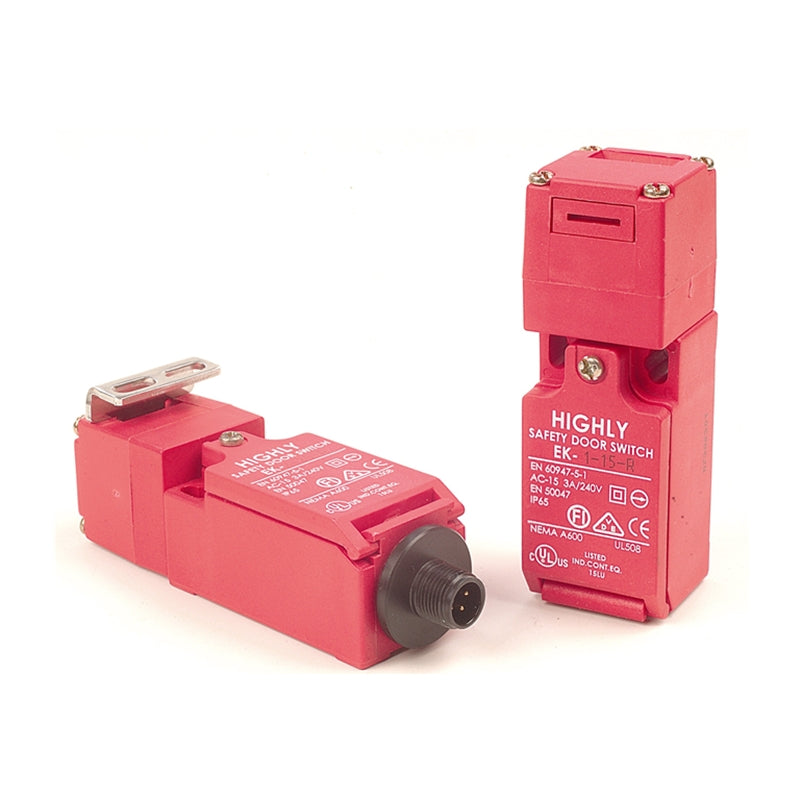

LIMIT SWITCH EK-SERIES

GENERAL SPECIFICATIONS:

Electrical Characteristics:

Contact resistance: Initial value 25mΩ max.

Min Current: 5VDC 5mA

Insulation Voltage: 600V

Thermal Current (lth): 10A

Insulation Resistance: 100MΩ Min (DC 500V)

Protection Against Electric Shock: Class II (double insulation).

Dielectric Strength: 2,500V 50/60Hz for 1 minute.

Rated Frequency: 50/60 Hz.

Pollution Degree: 3



Mechanical Characteristics:

Electrical durability: 150,000 Cycles Min.

Mechanical durability: 10,000,000 Cycles Min.

Vibration durability: IEC 68-2-6,10-55Hz±1 HZ,Excursion: 0.35mm,1 octave/min.

Shock durability: 300 m/s² min.

Max Switching Speed: 250mm/s.

Climatic Characteristics:

Degree of Protection: IP65

Operating Humidity: 95% max. (for 5°C to 40°C)

Operating Temperature:            -25˚C ~ +80˚C



FEATURES:

1.     Fits on 25mm tubing, ideal for small, light weight guards

2.     Contacts: Slow action 1N.C. /1N.O; 2N.C.; snap action 1N.C./1N.O.

3.     Positive opening mechanism

4.     Double-insulation structure

5.     Eight possible actuator entry points, easy to install

6.     90° and straight key

7.     IP65 enclosure rating

8.     Robust stainless steel keys



NOTE: PLEASE FEEL FREE TO SEND ANY INQUIRY ABOUT YOUR REQUIRMENTS.
