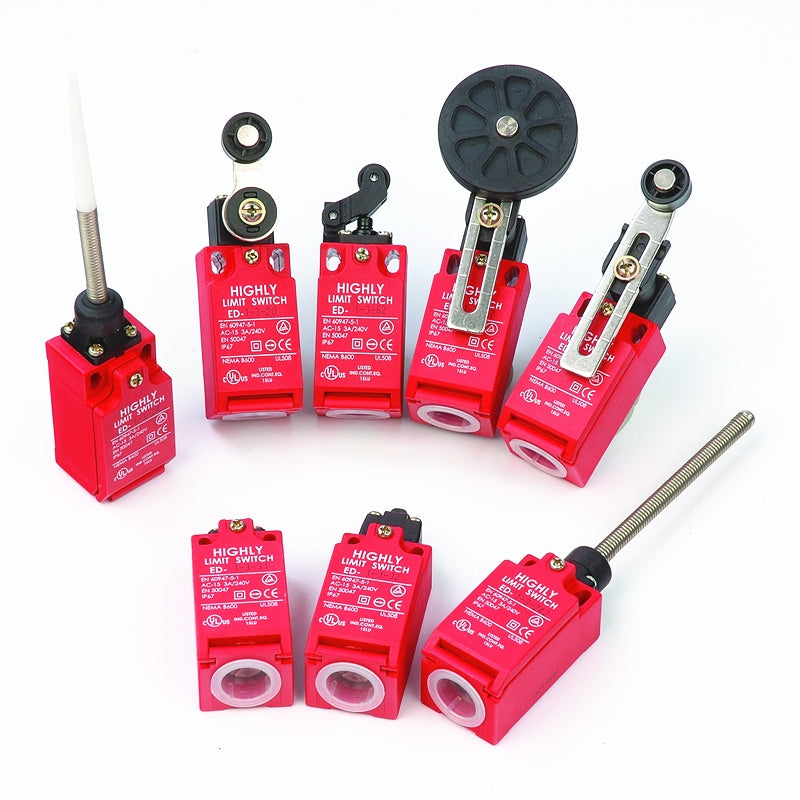

LIMIT SWITCH ED-SERIES

GENERAL SPECIFICATIONS:

Electrical Characteristics:

Contact resistance: Initial value 25mΩ max.

Min Current: 5VDC 5mA

Insulation Voltage: 600V

Thermal Current (lth): 10A

Insulation Resistance: 100MΩ Min (DC 500V)

Protection Against Electric Shock: Class II (double insulation).

Dielectric Strength: 2,500V 50/60Hz for 1 minute.

Rated Frequency: 50/60 Hz.

Pollution Degree: 3

Mechanical Characteristics:

Electrical durability:150,000 Cycles Min.

Mechanical durability: 10,000,000 Cycles Min.

Vibration durability: IEC 68-2-6,10-55Hz±1 HZ,Excursion: 0.35mm,1 octave/min.

Shock durability: 300 m/s² min.

Max Switching Speed: 250mm/s.

Climatic Characteristics:

Degree of Protection: IP67

Operating Humidity: 95% max. (for 5°C

Operating Temperature: -25˚C ~ +80˚C

FEATURES:

1.     Conforms to EN (TUV) standards corresponding to the CE marking

2.     Positive opening operation of NC (Normally Closed) contacts conforming to IEC /EN 60947-5-1

3.     Double insulation makes ground terminal unnecessary

4.     (Bears marking)

5.     Wide standard operating temperature range: -25° C to 80° C

6.     Full range of actuator heads and levers suitable for safety applications

7.     Sealing up to IP 67

8.     Wide switch variations, (Snap action and slow action basic switches)

9.     International conduit sizes

NOTE: PLEASE FEEL FREE TO SEND ANY INQUIRY ABOUT YOUR REQUIREMENTS.
