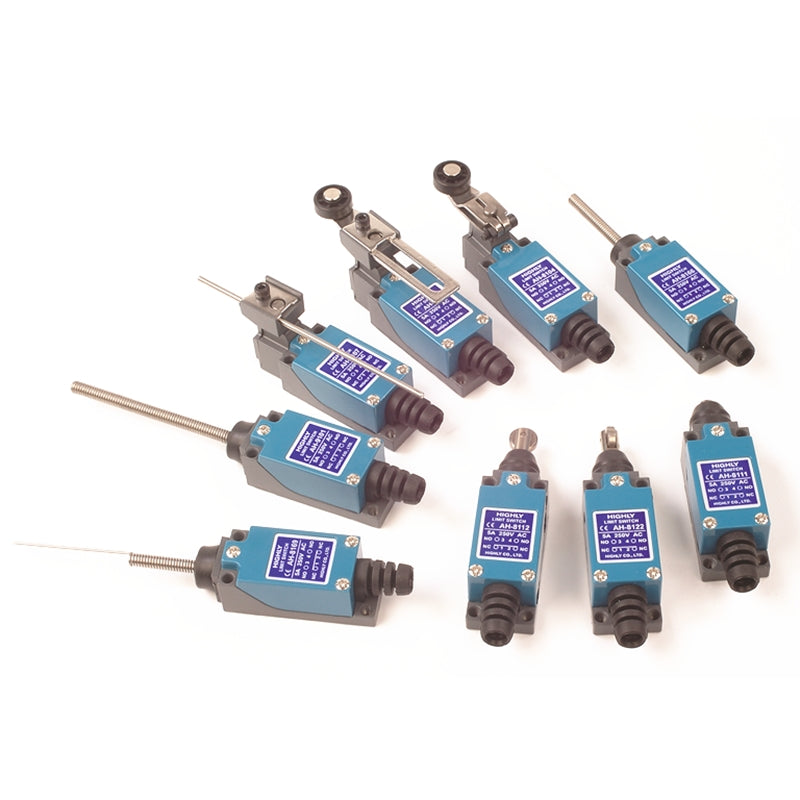

LIMIT SWITCH AH-SERIES

GENERAL SPECIFICATIONS:

Electrical Characteristics:

Rating 5A 125VAC or 250VAC

Insulating Resistance 100MΩ Min (at 500 VDC)

Dielectric Strength AC 1000V (50/60 Hz for 1 minute)

Contact Resistance 25mΩ Max. (Initial)

Mechanical Characteristics:

Operating Frequency Mechanical: max. 120 operations/minute.

Operating Frequency Electrical: max. 30 operations/minute.

Operating Speed: 0.5mm to 500mm/s (pin plunger models)

Vibration: 10 to 55Hz, 1.5 mm double amplitude

Operating Life Electrical: 100,000 cycles.

Mechanical: 1,000,000 cycles.

Climatic Characteristics:

Degree of Protection:                   IP40 (Excluding the terminals)

Operating Temperature:              -0˚C ~ +55˚C

Operating Humidity:                      95% max. (for 5°C to 35°C)

FEATURES:

1.     High precision and metal die-casting body.

2.     Easy to wire connection construction

3.     High mechanical strength

4.     Dust-proof construction

5.     CCC approval.
