FLOATLESS RELAY OPERATING CURRENT 100-240Vac 8 PIN ROUND BASE AFR-1 ANLY

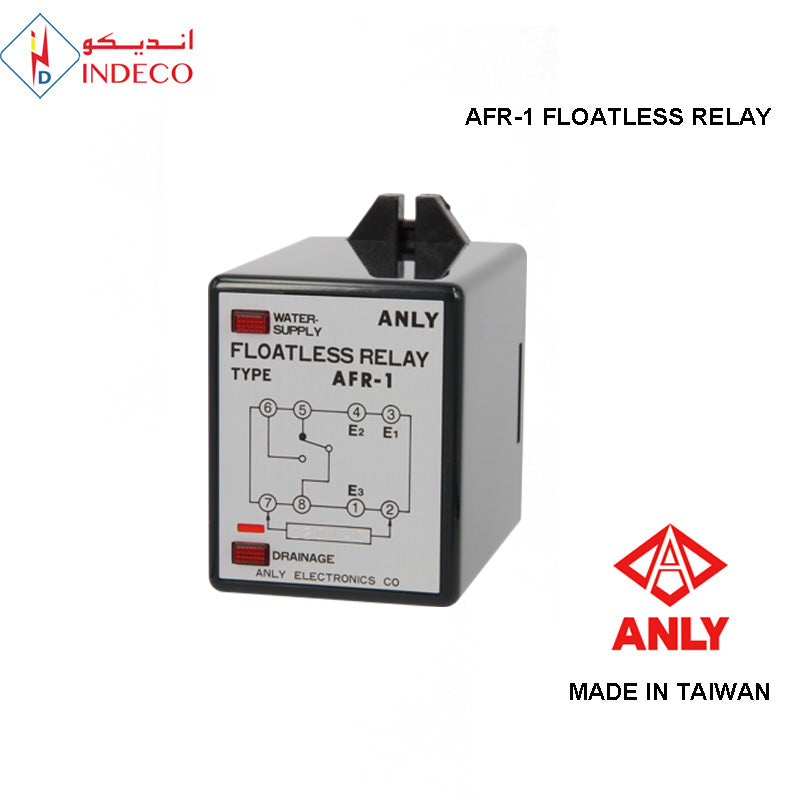

ANLY FLOATLESS RELAY AFR-1


GENERAL SPECIFICATIONS:


Operating Voltages: AC: 100 to 240V

AC frequency: 50 / 60 Hz

Load: 250VAC 5A (resistive load)

Second Voltage: 8VAC (except High sensing 24VAC )

Operate resistance: 0 -- 4KΩ

Release resistance: 15K -- ∞Ω

Length of cable: 1km Max

Power Consumption: Approx. 3.2VA

Weight: Approx. 200g

Size: 80mm X 49mm

Base: 8 Pins Round Base


Functionality:

  1. Suitable for any electrolytic fluid surface (NO VOLATILE FLUID)

  2. AC operating voltage

  3. Protection against interference from power surge

  4. Low electrodes AC voltage to prevent electrolysis for longer life expectance

  5. Low electrodes AC voltage to prevent electrolysis for longer life expectance








NOTE: PLEASE FEEL FREE TO SEND ANY INQUIRY ABOUT YOUR REQUIRMENTS.

🔥 500 pieces sold in past 3 months

Extensive Product Range

Compliance & Quality

24/7 Service



ANLY FLOATLESS RELAY AFR-1


GENERAL SPECIFICATIONS:


Operating Voltages: AC: 100 to 240V

AC frequency: 50 / 60 Hz

Load: 250VAC 5A (resistive load)

Second Voltage: 8VAC (except High sensing 24VAC )

Operate resistance: 0 -- 4KΩ

Release resistance: 15K -- ∞Ω

Length of cable: 1km Max

Power Consumption: Approx. 3.2VA

Weight: Approx. 200g

Size: 80mm X 49mm

Base: 8 Pins Round Base


Functionality:

  1. Suitable for any electrolytic fluid surface (NO VOLATILE FLUID)

  2. AC operating voltage

  3. Protection against interference from power surge

  4. Low electrodes AC voltage to prevent electrolysis for longer life expectance

  5. Low electrodes AC voltage to prevent electrolysis for longer life expectance








NOTE: PLEASE FEEL FREE TO SEND ANY INQUIRY ABOUT YOUR REQUIRMENTS.
