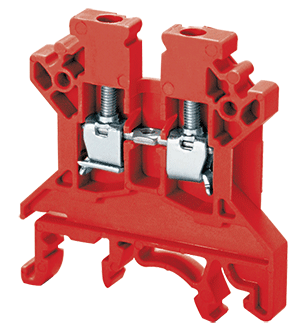

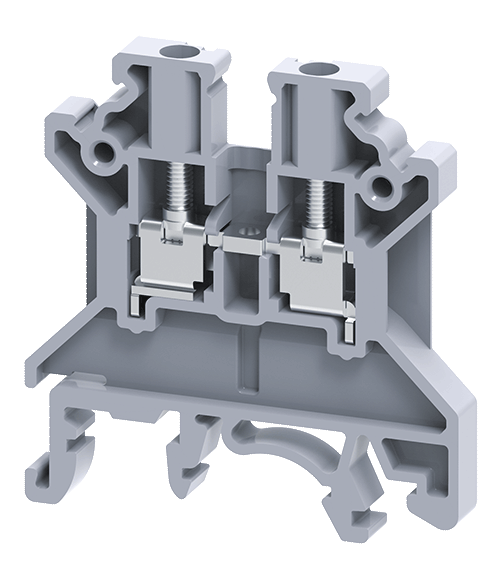

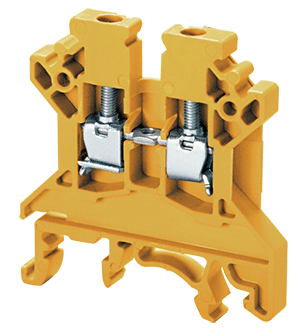

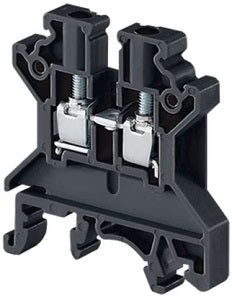

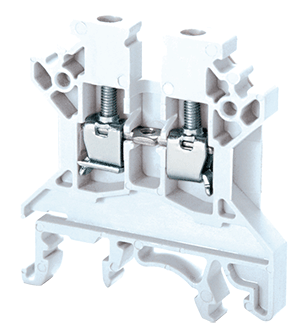

2.5 sq.mm Feed Through Terminal Blocks are the most Versatile terminals for control, automation, instrumentation and power distribution applications. A specially designed flexible foot enables easy mounting and dismounting from the Din Rail with the help of a screw driver.
These Terminal Blocks have marker holding recesses to accept marking tags for circuit identification. Cross connection can be achieved with the aid of shorting links / sleeves & screws.
TECHNICAL DATA |
|||
Rated Voltage | 1000 V | ||
Rated Current | 24 A | ||
Tightening Torque | 0.4 Nm | ||
Housing Material | Polyamide | ||
Product Function | Feed Through | ||
Wire Entry Orientation | Side Entry | ||
Mounting Possibility | DIN 32/DIN 35/DIN 35-15 Rail | ||
Screw Size | M2.5 | ||
Operated by | Screwdriver | ||
Rated Surge Voltage | 8 KV | ||
Pollution Degree | 3 |
NOTE: PLEASE FEEL FREE TO SEND ANY INQUIRY ABOUT YOUR REQUIRMENTS.
