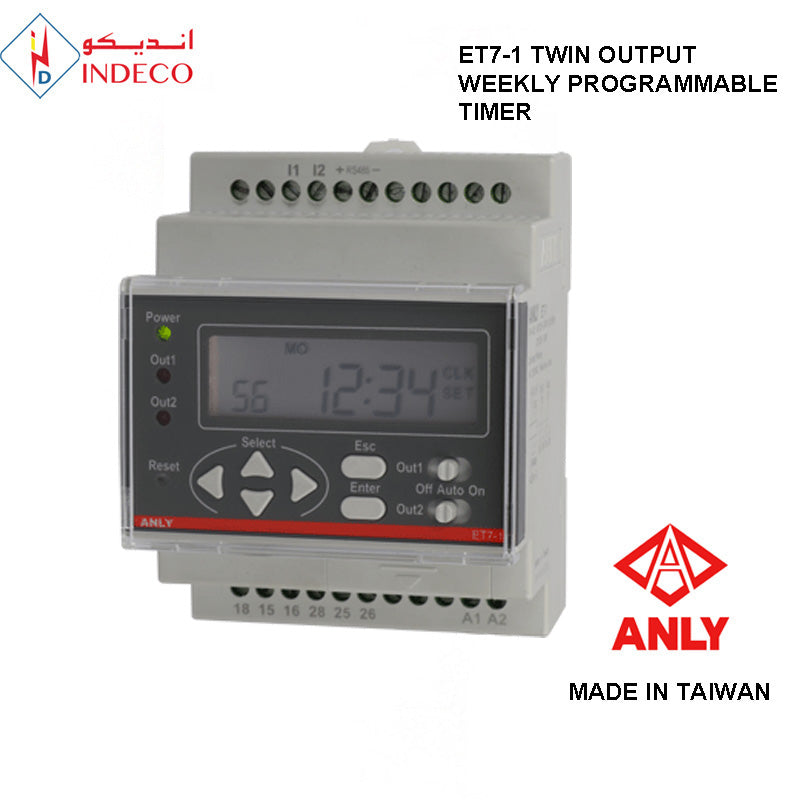

DIGITAL PROGRAMABLE WEEKLY TIMER TWIN OUTPUTS ET7-1 ANLY

ANLY DIGITAL PROGRAMABLE WEEKLY TIMER TWIN OUTPUTS ET7-1

GENERAL SPECIFICATIONS:

Operating Voltages: AC/DC: 100 to 240V

AC frequency: 50 / 60 Hz

Indicate Power: Power-Green / OUT-1 –OUT-2 R

Power Consumption: Approx. 5.6VA

Weight: Approx. 200g

Size: 90.6mm X 70mm

Front Face Size: 45mm X 70mm

Mount: Din Rail

Functionality:

1. Weekly programmable timer

2. Two independent output for ON/OFF pulse

3. 160 different ON/OFF pulse timing settings per day

4. Different weekday combinations assignment for each task

5. EEPROM program memory for battery independence

6. Built-in Lithium battery prevent power outage up to one year (for time base)

7. Crystal oscillator for extreme accuracy

8. Separate twin timer feature for ON-time or ON-time-OFF-time countdown

9. Daylight-saving-time function, Max 99 weeks

10. Backlit LCD for easy viewing

11. Each timers time base can be synchronous by RS485


NOTE: PLEASE FEEL FREE TO SEND ANY INQUIRY ABOUT YOUR REQUIREMENTS.
