BATTERY CHARGER 24V DC 10A MAX DIN RAIL MOUNTABLE ADCB2410AC ADELSYSTEM

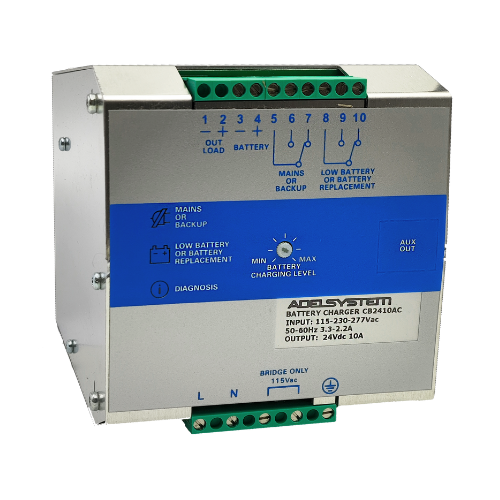

 CB2410AC DIN RAIL INTELLIGENT BATTERY CHARGER (24V/10A)

Brand: ADELSYSTEM

Origin: ITALY

INDOOR USE ONLY

Suited for the following battery types: Open Lead Acid,

    Sealed Lead Acid, lead Gel and Ni-Cd

Automatic diagnostic of battery status. Charging curve       IUoUo,

Constant voltage and current Switching technology, output     voltage 28.8Vdc Three

Charging levels: Boost, Trickle, Recovery.

Protected against short circuit, inverted polarity, over Load.

Signal output (contact free) for fault battery state

Protection degree IP20 - DIN rail

Phase: Single Phase

Nominal Input: 115-277Vac

Input Voltage range: 90 – 305

AC frequency: 47 – 63 Hz

Output Voltage Bulk Charge: 28.8Vdc / 10A

Output Voltage trickle Charge: 27.5Vdc / 10A

Battery Full Charge Level Can Be Adjusted: 20÷100%/IBATT

AUX Features: Battery Temp Sensor.

Installation Method: DIN Rail Mountable

Weight: 650grams approx.

Connecting Method: Screw Tight Terminal / Pin type lugs/Wire

Efficiency up to 88%

Temperature: Ambient Temperature -20 upto+85°C

Humidity: 95 % to 25 °C

Internal Fuse: 6.3A External Fuse: 16A (recommended)

PLEASE FEEL FREE TO CONTACT US FOR DIFFERENT VARIATIONS.

The Adel system offers a complete range of industrial power supply units dedicated to a whole range of different applications. This is a revolutionary line designed to provide uninterruptible power, whatever the system conditions are, through a sophisticated and completely automatic management of any type of industrial electrical panel’s battery.

- Easy to install
- Compact size
- Power Supply
- Back Up Module and Battery Charger.
