BATTERY CHARGER 12V DC 6A & 24V DC 5A MAX DIN RAIL MOUNTABLE ADCB12245A ADELSYSTEM

 General Specifications

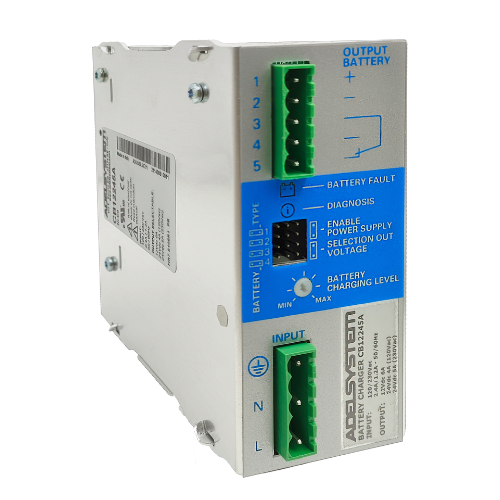

CB12245A DIN RAIL INTELLIGENT BATTERY CHARGER(12V/6A and 24V/5A)

Brand: ADELSYSTEM

Origin: ITALY

INDOOR USE ONLY

*Suited for the following battery types: Open Lead Acid,

Sealed Lead Acid, lead Gel, Ni-Cd, Li-Ion (option)

*Four charging levels: Boost, Absorption, Float, Recovery.

*Protected against short circuit, inverted polarity, over Load.

Phase: Single Phase

Nominal Input: 115-277Vac

     Input Voltage range: 90Vac-305Vac

AC frequency: 47 – 63 Hz

Output Voltage Bulk Charge 12V battery: 14.4Vdc / 6A

Output Voltage Bulk Charge 24V battery: 28.8Vdc / 5A

Output Voltage trickle Charge 12V battery: 13.75Vdc / 6A

Output Voltage trickle Charge 24V battery: 27.50Vdc / 6A

Battery Full Charge Level Can Be Adjusted: 20÷100% In

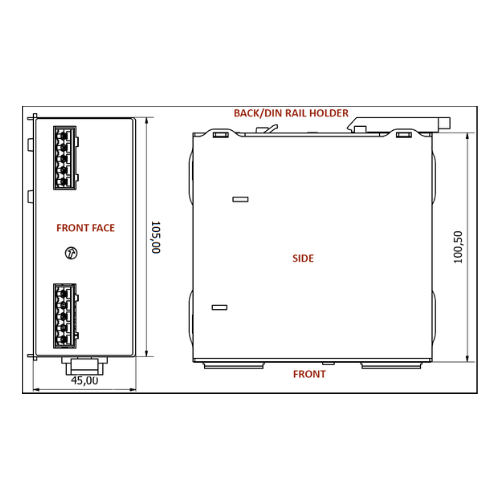

Installation Method: DIN Rail Mountable

Weight: 300grams approx.

Connecting Method: Screw Tight Terminal Male Socket Are In The Package box

Efficiency up to 90%

Temperature: Ambient Temperature operation -10 upto+85°C

Humidity: 95 % to 25 °C

Internal Fuse: 4A ----- External Fuse: 10A (recommended)

PLEASE FEEL FREE TO CONTACT US FOR DIFFERENT VARIATIONS.

The Adel system offers a complete range of industrial power supply units dedicated to a whole range of different applications. This is a revolutionary line designed to provide uninterruptible power, whatever the system conditions are, through a sophisticated and completely automatic management of any type of industrial electrical panel’s battery.

- Easy to install
- Compact size
- Power Supply
- Back Up Module and Battery Charger.
