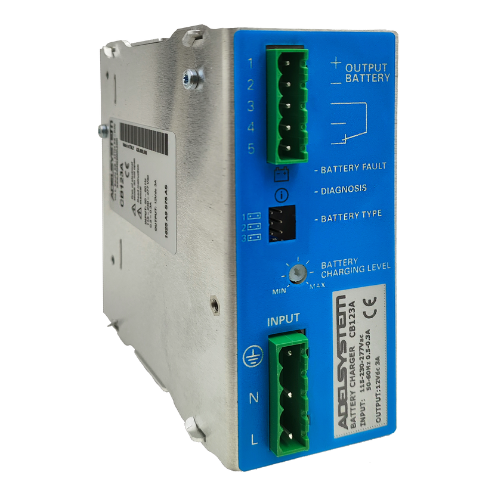

ADCB123A DIN RAIL INTELLIGENT BATTERY CHARGER (12V/3A)
Brand: ADELSYSTEM
Origin: ITALY
INDOOR USE ONLY
Suited for the following battery types: Open Lead
Acid, Sealed Lead Acid, lead Gel and Ni-Cd (option)
Automatic diagnostic of battery status.
Three charging levels: Boost, Trickle, Recovery.
Protected against short circuit, inverted polarity, over Load.
Phase: Single Phase
Nominal Input: 115-277Vac
Input Voltage range: On 115Vac Selection (90-135Vac)
On 230Vac Selection (170-264Vac)
AC frequency: 47 – 63 Hz
Output Voltage Bulk Charge: 14.4Vdc / 3A
Output Voltage trickle Charge: 13.75Vdc / 3A
Battery Full Charge Level Can Be Adjusted: 20÷100% In
Installation Method: DIN Rail Mountable
Weight: 300grams approx.
Connecting Method: Screw Tight Terminal Male Socket Are In The Package box
PLEASE FEEL FREE TO CONTACT US FOR DIFFERENT VARIATIONS.
The Adel system offers a complete range of industrial power supply units dedicated to a whole range of different applications. This is a revolutionary line designed to provide uninterruptible power, whatever the system conditions are, through a sophisticated and completely automatic management of any type of industrial electrical panel’s battery.
- Easy to install
- Compact size
- Power Supply
- Back Up Module and Battery Charger.
