BATTERY CHARGER 12V DC 10A MAX DIN RAIL MOUNTABLE ADCB1210A ADELSYSTEM

General Specifications

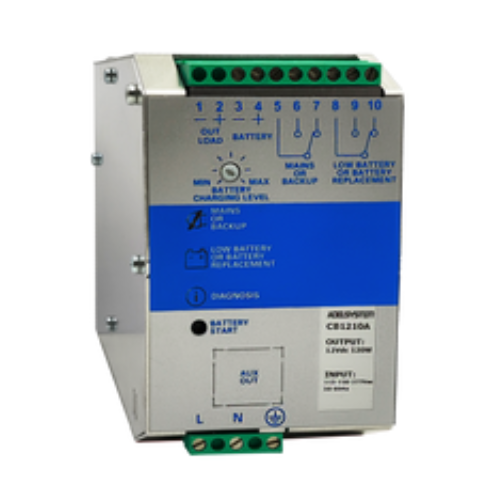

CB1210A DIN RAIL INTELLIGENT BATTERY CHARGER (12V/10A)

Brand: ADELSYSTEM

Origin: ITALY

INDOOR USE ONLY

Suited for the following battery types: Open Lead Acid,

  Sealed Lead Acid, lead Gel and Ni-Cd (option)

Automatic diagnostic of battery status. Charging curve

   IUoUo, constant voltage and current

Switching technology, output voltage 14.4 Vdc Three

    Charging levels: Boost, Trickle, and Recovery.

Protected against short circuit, inverted polarity,

And over Load.

Phase: Single Phase

Nominal Input: 115-277Vac

     Input Voltage range: 90 – 305

AC frequency: 47 – 63 Hz

Output Voltage Bulk Charge: 14.4Vdc / 10A

Output Voltage trickle Charge: 13.75Vdc / 10A

Battery Full Charge Level Can Be Adjusted: 20÷100%/IBATT

AUX Features: Battery Temp Sensor.

Installation Method: DIN Rail Mountable

Weight: 650grams approx.

Connecting Method: Screw Tight Terminal / Pin type lugs/Wire

Efficiency up to 89%

Temperature: Ambient Temperature -20 upto+85°C

Humidity: 95 % to 25 °C

Internal Fuse: 4A External Fuse: 10A (recommended)

PLEASE FEEL FREE TO CONTACT US FOR DIFFERENT VARIATIONS.

The Adel system offers a complete range of industrial power supply units dedicated to a whole range of different applications. This is a revolutionary line designed to provide uninterruptible power, whatever the system conditions are, through a sophisticated and completely automatic management of any type of industrial electrical panel’s battery.

- Easy to install
- Compact size
- Power Supply
- Back Up Module and Battery Charger.
