AC LINE VOLTAGE RELAY 3-PHASE 8 PINS AVR172-8T ANLY

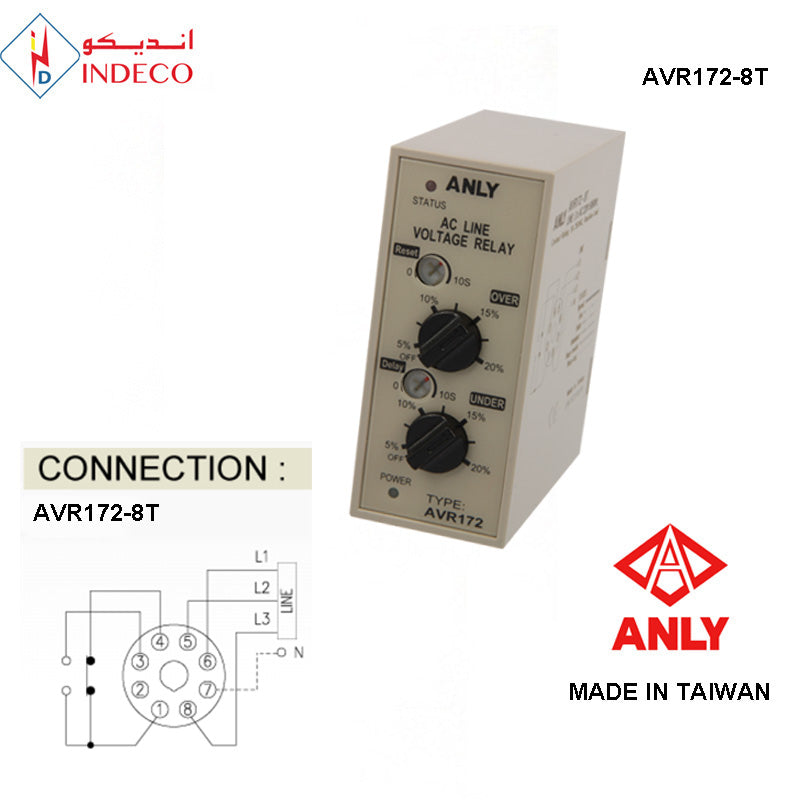

 ANLY AC LINE VOLTAGE PROTECTION RELAY AVR172-8T

GENERAL SPECIFICATIONS:

Operating Voltages: AC: 220, 240, 380, 415, 440V

AC frequency: 50 / 60 Hz

Detecting method: Detect from supply voltage

Load: 250VAC 5A (resistive load)

Power Consumption: Approx. 3VA

Weight: Approx. 170g

Size: 80.5mm X 35mm

Base: 8 Pins Round Base

Functionality:

1. 3-phase voltage and fault detector

2. Can detect abnormal condition to prevent damages to the equipments

3. Auto shut-off while detecting excessive or insufficient voltage, range from 5% to 20% variable

4. Out-of-phase detection while the motor operating

5. Can be set up to detect excessive or insufficient voltage only

6. Delay and Reset time – 0-10sec adjustable tripping delay*

7. CE certified

        Note: indicates applicable to AVR172 series only
