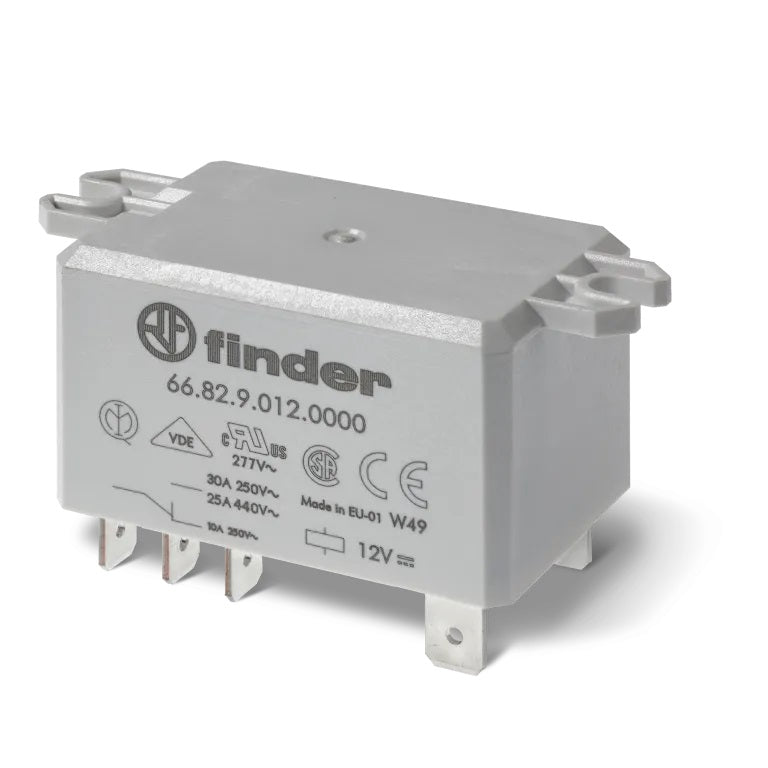

66.82.8 POWER RELAY 8-PIN DPDT 30A 2-CO COIL VOLTAGE VARIATIONS FROM 12-240VAC

 Type 66.82 is 2 pole changeover (DPDT) 30A power relay with 250 Faston connections and Flange mount.

Features include:

Reinforced insulation between coil and contacts according to EN 60335-1; 8 mm creepage and clearance distances

AC coils & DC coils.

Commercial Description

2 pole changeover (DPDT) 30 A power relay with 250 Faston connections and Flange mount. Faston 250 connections and Flange mount . ≥ 1.5 mm contact gap, Faston 250 connections and Flange mount.

Contact configuration: 2 pole, CO (2PDT)

Dimensions: 33.5x31x68.5 mm

Electrical life: 100000 cycles

Insulation coil/contacts: 6 kV

Coil Supply: AC

Nominal voltage: 12 upto 240V

Rated contact voltage: 250 V AC

Rated current (contacts): 30A

Technical description

High Power relay,

 Faston 250 with top flange mount,

 2 pole, CO (nPDT), 30A, AgCdO,

 rated power 3.6 VA,

 resistance 5500 Ω,

 consumption 15 mA,

 must drop-out voltage 20% V,

 ambient temperature from -40 to +70 °C
