66.13.8 GENERAL PURPOSE INDUSTRIAL RELAY 11-PIN 3PDT 10A 2-CO COIL VOLTAGE VARIATIONS FROM 12-240VAC ROUND BASE TYPE SERIES-90

 Type 60.13.8 is a general purpose industrial relay, 3 10 A contacts, 11 pin plug-in.

Coil voltage variation AC 12 -240V

Features include:

3 CO contacts

Cadmium-free contacts (standard version)

AC or DC coil

UL Listing (relay/socket/jumper link)

Contact material options

Lockable test button and mechanical indicator (standard version)

For use with 90 Series sockets.

Commercial Description

General purpose industrial relay, 3 pole 10 A contacts, 11 pin plug-in.

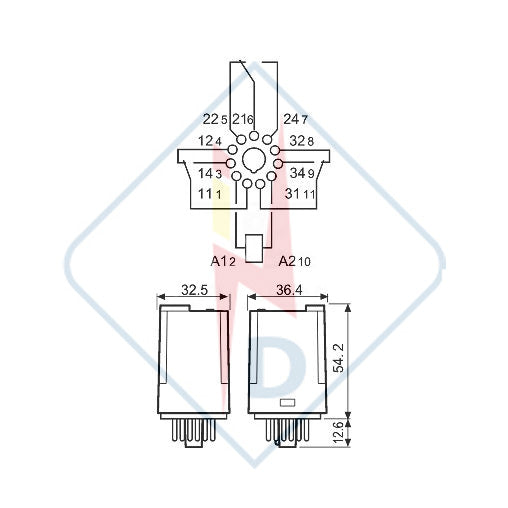

Contact configuration: 3 pole, CO (3PDT)

Dimensions: 32.5x54.2x36.4 mm

Electrical life: 200000 cycles

Insulation coil/contacts: 4 kV

Coil Supply: AC

Nominal voltage: 12 upto 240V

Rated contact voltage: 250 V AC

Rated current (contacts): 10A

Technical description

Industrial relay, 11 pin plug-in socket version,

3 pole, CO (3PDT), 10 A, AgNi,

AC coil,

rated power 2.2 VA,

resistance 7250 Ω,

consumption 10.5 mA,

must drop-out voltage 20%V,

option: Lockable test button + mechanical indicator,

ambient temperature from -40 to +70 °C

NOTE: PLEASE FEEL FREE TO SEND ANY INQUIRY ABOUT YOUR REQUIREMENTS.
