FINDER RELAY 8 PINS DPDT 10A 2-CO ROUND BASE SERIES 60.12.9 GENERAL PURPOSE INDUSTRIAL RELAY COIL VOLTAGE VARIATIONS FROM 12-220VDC ROUND BASE TYPE SERIES-90

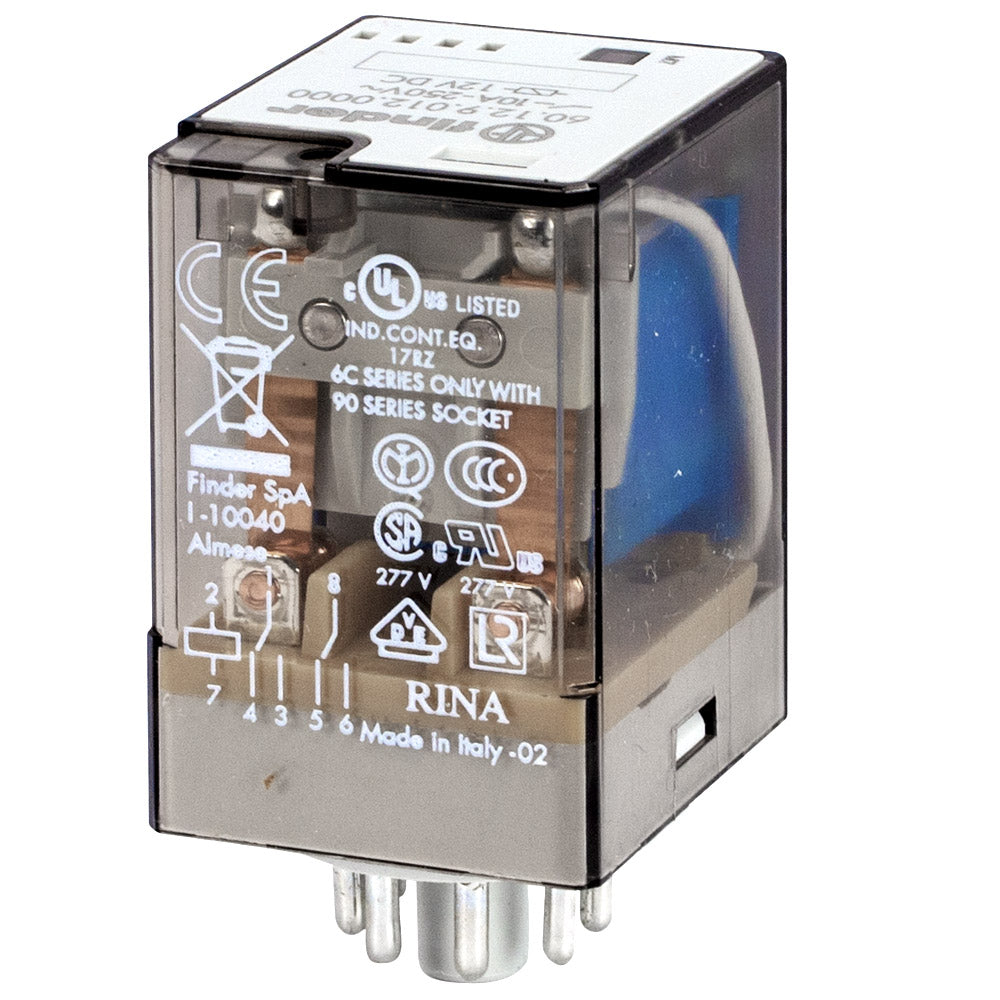

 Type 60.12.9 is a general purpose industrial relay, 2-CO 10A contacts, 8 pin plug-in.

Coil voltage variation DC 12 -125V

Features include:

2 CO contacts

Cadmium-free contacts (standard version)

DC coil

UL Listing (relay/socket/jumper link)

Contact material options

Lockable test button and mechanical indicator (standard version)

For use with 90 Series sockets.

Commercial Description

General purpose industrial relay, 2 poles 10 A contacts, 8 pin plug-in.

Contact configuration: 2 pole, CO (2PDT)

Dimensions: 32.5x54.2x36.4 mm

Electrical life: 200000 cycles

Insulation coil/contacts: 4 kV

Coil Supply: DC

Nominal voltage: 12 upto 220V

Rated contact voltage: 250 V AC

Rated current (contacts): 10A

Technical description

Industrial relay, 8 pin plug-in socket version,

2 pole, CO (DPDT), 10 A, AgNi,

DC coil,

rated power 2.2 VA,

resistance 7250 Ω,

consumption 10.5 mA,

must drop-out voltage 20%V,

option: Lockable test button + mechanical indicator,

ambient temperature from -40 to +70 °C
