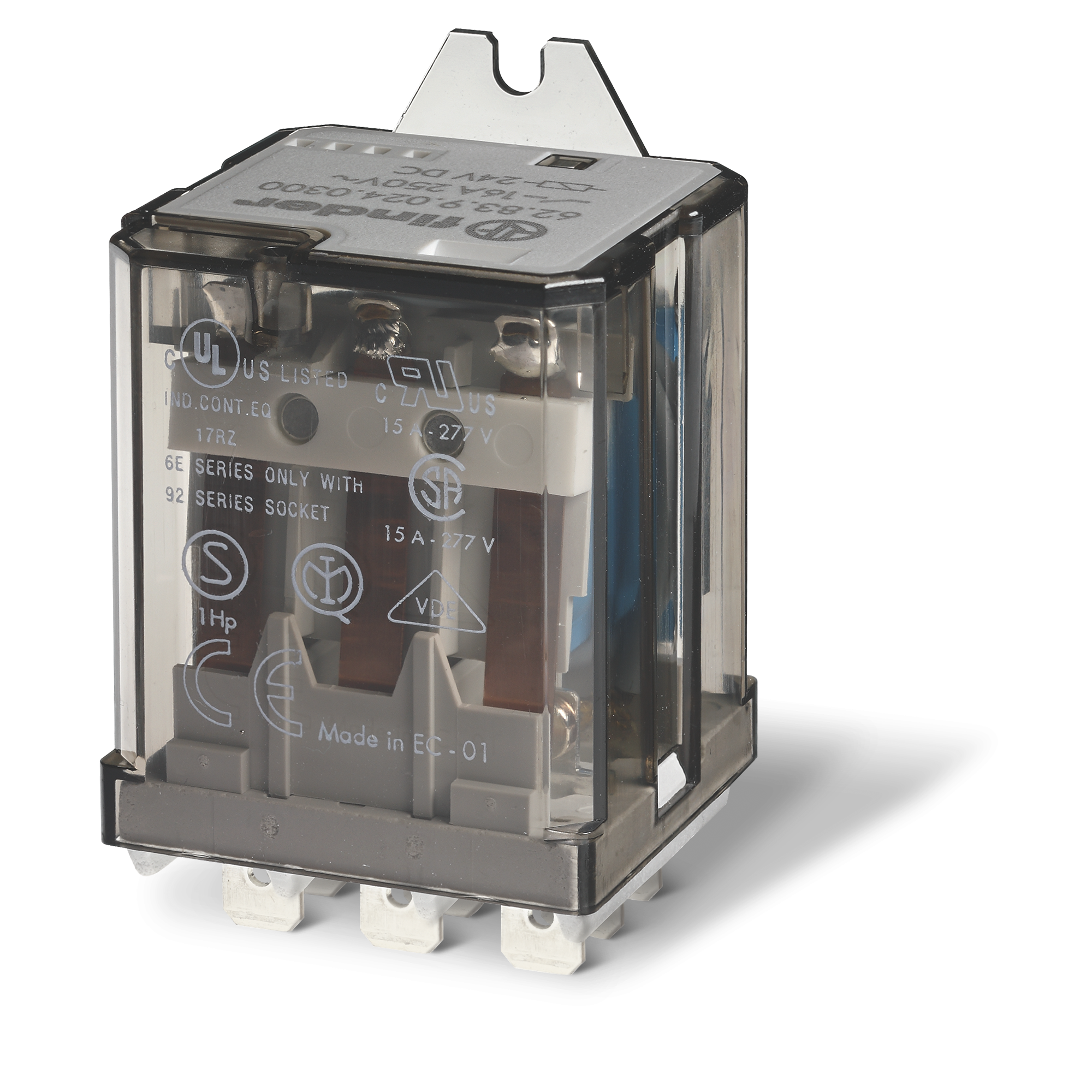

Type 62.83 power relay with 3 pole changeover contacts and 250 Faston (6.3 x 0.8 mm) connections. Flange or optional mounting adaptors.
Coil supply voltage DC : 12 to 125V variations.
Features include:.
AC coils & DC coils
LED, mechanical indicator & test button options
Reinforced insulation between coil and contacts according to EN 60335-1, with 6 mm clearance & 8 mm creepage distance
SELV coil-contact separator option
Cadmium-free contact material option
European Patent
Commercial Description
Contact configuration: 3 pole, (TPDT) NO Contact gap ≥ 3 mm
Dimensions: 38.2x49.1x35.8 mm
Electrical life: 100000 cycles
Insulation coil/contacts: 6 kV
Coil Supply: DC
Nominal voltage: 12 upto 125V
Rated contact voltage: 250 V AC
Rated current (contacts): 16A
Technical description
High Power relay,
Faston 250 with flange mount,
3 pole, NO Contact gap ≥ 3 mm 16A, AgCdO,
rated power 3 VA,
resistance 5000 Ω,
consumption 14 mA,
must drop-out voltage 20%V,
ambient temperature from -40 to +60 °C
NOTE: PLEASE FEEL FREE TO SEND ANY INQUIRY ABOUT YOUR REQUIRMENTS.
