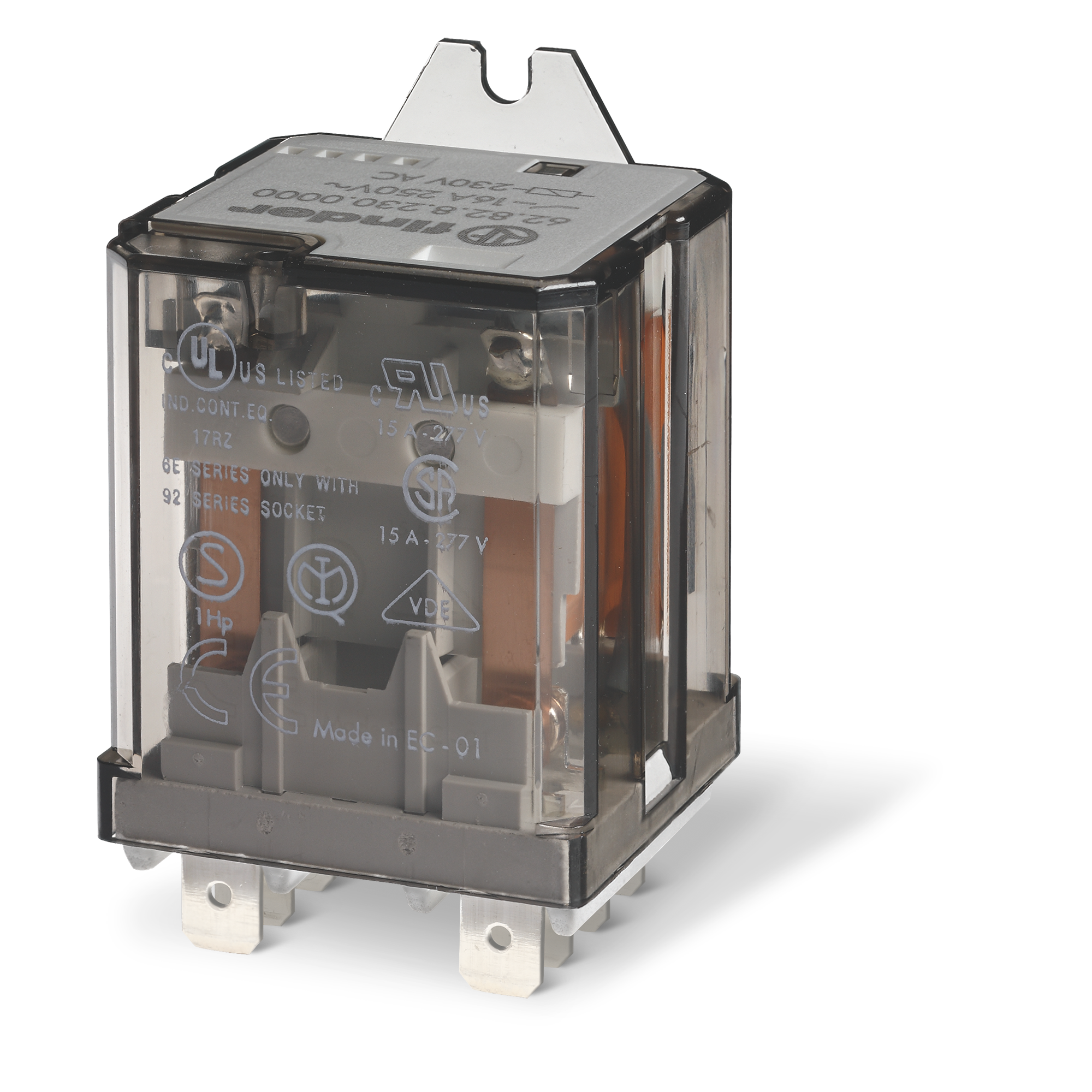

62.82.9 POWER RELAY 8-PIN DPDT 16A 2-CO COIL VOLTAGE VARIATIONS FROM 12-125VDC

 Type 62.82 power relay with 2 pole changeover contacts and 250 Faston (6.3 x 0.8 mm) connections. Flange or optional mounting adaptors.

Coil supply voltage DC : 12 to 125V variations.


Features include:.

AC coils & DC coils

LED, mechanical indicator & test button options

Reinforced insulation between coil and contacts according to EN 60335-1, with 6 mm clearance & 8 mm creepage distance

SELV coil-contact separator option

Cadmium-free contact material option

European Patent


Commercial descriptionDescription

Contact configuration: 2 pole, (DPDT) NO Contact gap ≥ 3 mm

Dimensions: 38.2x49.1x35.8 mm

Electrical life: 100000 cycles

Insulation coil/contacts: 6 kV

Coil Supply: DC

Nominal voltage: 12 upto 125V

Rated contact voltage: 250 V AC

Rated current (contacts): 16A


Technical description

High Power relay,

Faston 250 with flange mount,

2 pole, NO Contact gap ≥ 3 mm 16A, AgCdO,

rated power 3 VA,

resistance 5000 Ω,

consumption 14 mA,

must drop-out voltage 20%V,

ambient temperature from -40 to +60 °C


NOTE: PLEASE FEEL FREE TO SEND ANY INQUIRY ABOUT YOUR REQUIRMENTS.

🔥 500 pieces sold in past 3 months

Extensive Product Range

Compliance & Quality

24/7 Service

 Type 62.82 power relay with 2 pole changeover contacts and 250 Faston (6.3 x 0.8 mm) connections. Flange or optional mounting adaptors.

Coil supply voltage DC : 12 to 125V variations.


Features include:.

AC coils & DC coils

LED, mechanical indicator & test button options

Reinforced insulation between coil and contacts according to EN 60335-1, with 6 mm clearance & 8 mm creepage distance

SELV coil-contact separator option

Cadmium-free contact material option

European Patent


Commercial descriptionDescription

Contact configuration: 2 pole, (DPDT) NO Contact gap ≥ 3 mm

Dimensions: 38.2x49.1x35.8 mm

Electrical life: 100000 cycles

Insulation coil/contacts: 6 kV

Coil Supply: DC

Nominal voltage: 12 upto 125V

Rated contact voltage: 250 V AC

Rated current (contacts): 16A


Technical description

High Power relay,

Faston 250 with flange mount,

2 pole, NO Contact gap ≥ 3 mm 16A, AgCdO,

rated power 3 VA,

resistance 5000 Ω,

consumption 14 mA,

must drop-out voltage 20%V,

ambient temperature from -40 to +60 °C


NOTE: PLEASE FEEL FREE TO SEND ANY INQUIRY ABOUT YOUR REQUIRMENTS.
