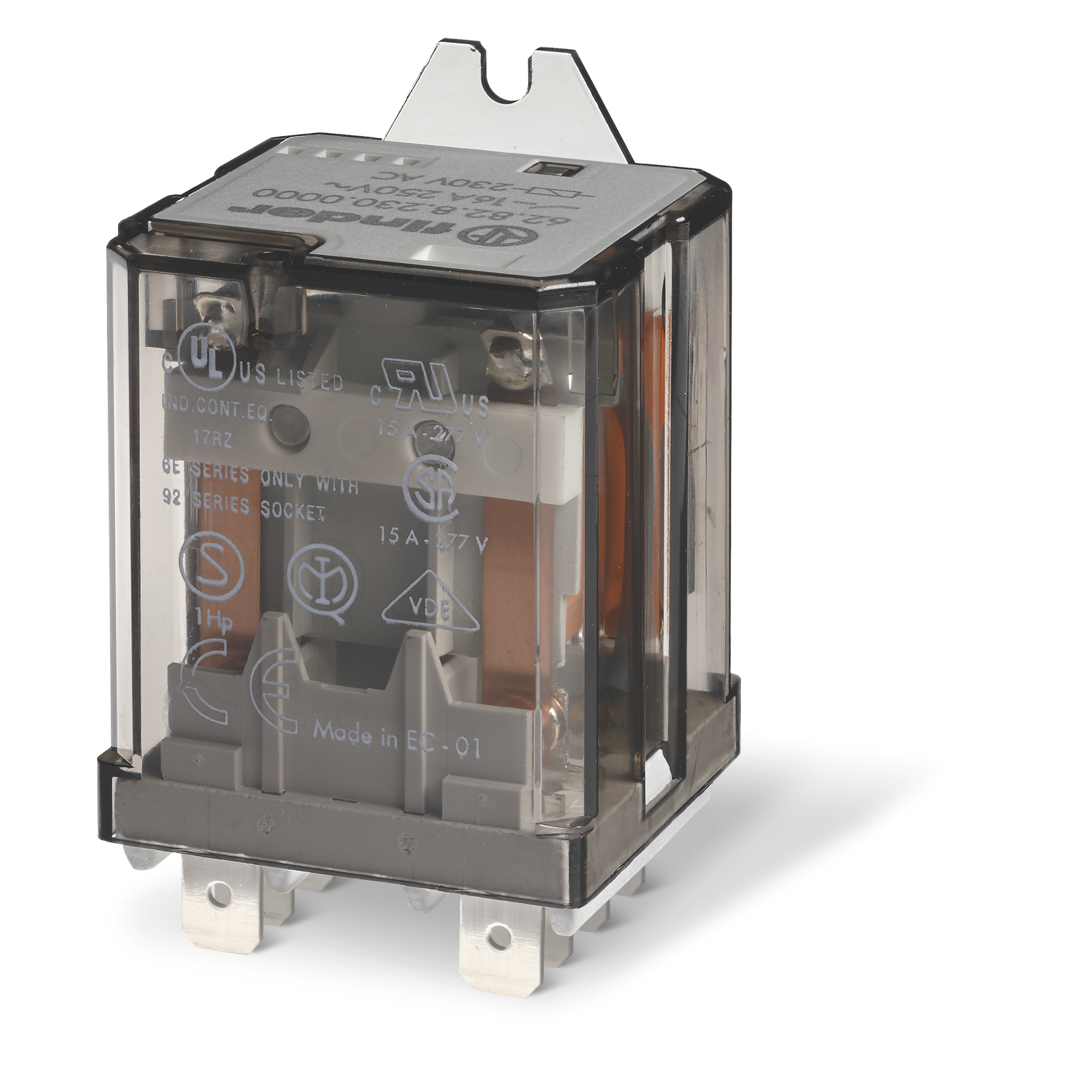

62.82.8 POWER RELAY 8-PIN DPDT 16A 2-CO COIL VOLTAGE VARIATIONS FROM 12-240VAC

 Type 62.82 power relay with 2 pole changeover contacts and 250 Faston (6.3 x 0.8 mm) connections. Flange or optional mounting adaptors.

Coil supply voltage AC : 12 to 240V variations.

Features include:.

AC coils & DC coils

LED, mechanical indicator & test button options

Reinforced insulation between coil and contacts according to EN 60335-1, with 6 mm clearance & 8 mm creepage distance

SELV coil-contact separator option

Cadmium-free contact material option

European Patent

Commercial Description

Contact configuration: 2 pole, (DPDT) NO Contact gap ≥ 3 mm

Dimensions: 38.2x49.1x35.8 mm

Electrical life: 100000 cycles

Insulation coil/contacts: 6 kV

Coil Supply: AC

Nominal voltage: 12 upto 240V

Rated contact voltage: 250 V AC

Rated current (contacts): 16A

Technical description

High Power relay,

Faston 250 with flange mount,

2 pole, NO Contact gap ≥ 3 mm 16A, AgCdO,

rated power 3 VA,

resistance 5000 Ω,

consumption 14 mA,

must drop-out voltage 20%V,

ambient temperature from -40 to +60 °C
