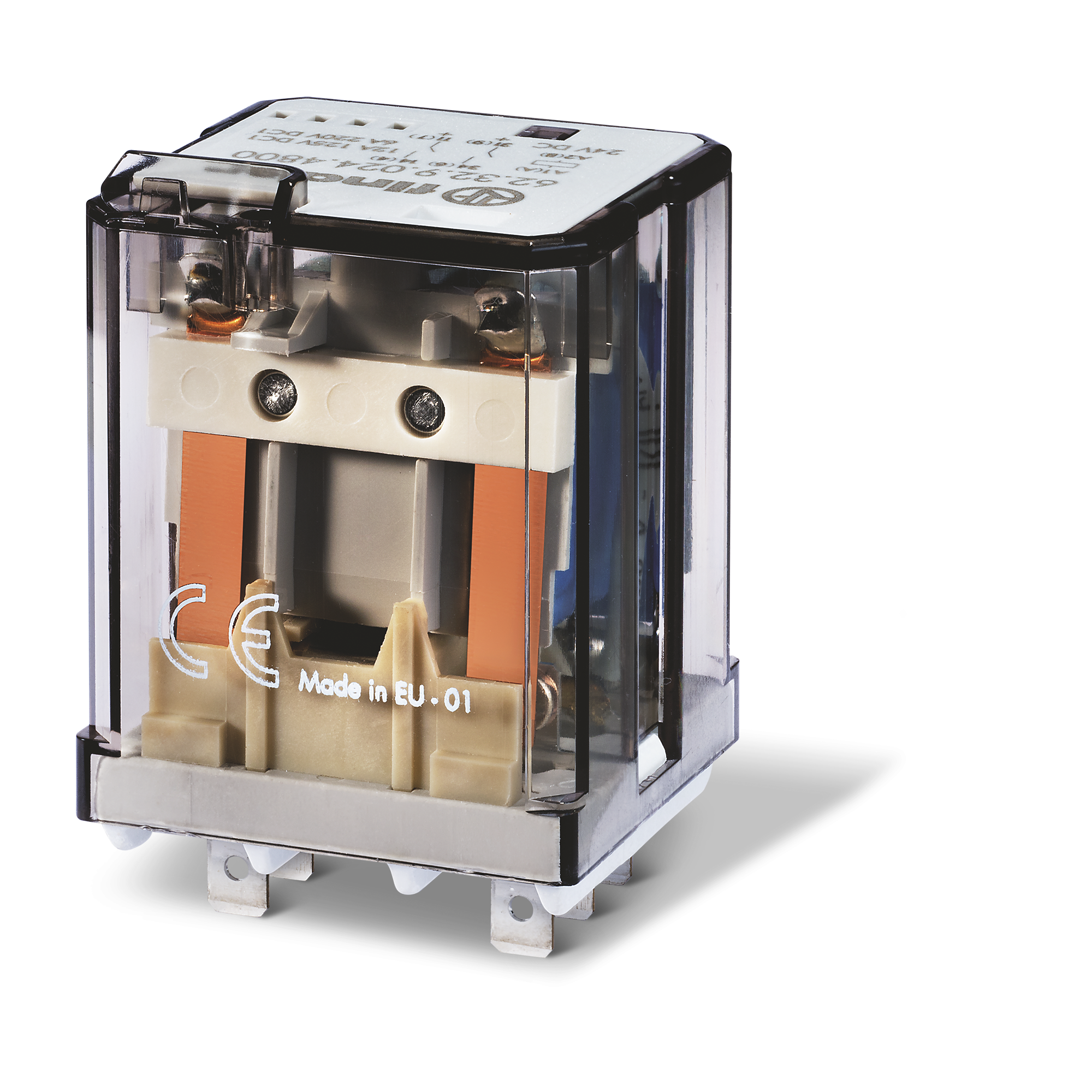

62.32.8 POWER RELAY 8-PIN DPDT 16A 2-CO COIL VOLTAGE VARIATIONS FROM 12-240VAC



Type 62.32.8 is a power relay, 16A, for plug-in mounting on socket/Faston 187, 2 changeover contacts.

Coil supply voltage AC : 12 to 240V variations.

Features include:


– Mounting on 92 Series sockets or directly via Faston 187 (4.8 x 0.5 mm)

– AC or DC coil

– UL Listing (relay/socket/jumper link)

– LED, lockable test button and standard mechanical indicator

– Reinforced insulation between coil and contacts

according to EN 60335-1; creepage and clearance of 8/6 mm

– Variant with SELV separator between coil and contacts

– Cadmium-free contact material variant



Commercial description

16 A power relay, 2 CO or NO contacts (NO contact gap ≥ 3 mm), socket mounting (92 Series) or directly via Faston 187 (4.8 x 0.5 mm). Equipped with AC or DC coil, LED, lockable test button and standard mechanical indicator. Reinforced insulation between coil and contacts according to EN 60335-1; clearance/creepage separation 6/8 mm

Contact configuration: 2 pole, (DPDT) NO Contact gap ≥ 3 mm

Dimensions: 38.2x49.1x35.8 mm

Electrical life: 100000 cycles

Insulation coil/contacts: 6 kV

Coil Supply: AC

Nominal voltage: 12 upto 240V

Rated contact voltage: 250 V AC

Rated current (contacts): 16A


Technical description

High Power relay,

Plug-in socket version,

2 pole,(DPDT) NO Contact gap ≥ 3 mm, 16A, AgCdO,

rated power 3 VA,

resistance 6300 Ω,

consumption 12.5 mA,

must drop-out voltage 20%V,

ambient temperature from -40 to +50 °C

NOTE: PLEASE FEEL FREE TO SEND ANY INQUIRY ABOUT YOUR REQUIREMENTS.
