56.32.9 MINIATURE POWER RELAY 8 PIN DPDT 12A 2-CO COIL VOLTAGE VARIATIONS FROM 12-240VDC BASE TYPE SERIES-96

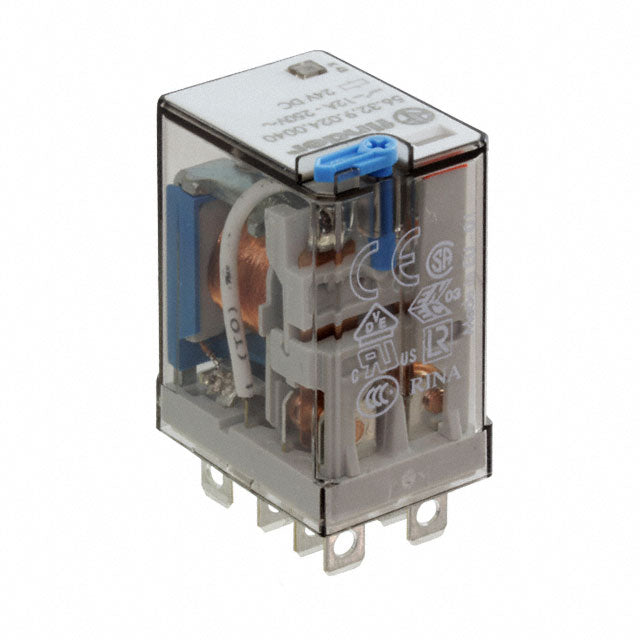

 Type SERIES 56 is miniature power relays 12A with 2 pole changeover contacts for plug-in mount on sockets/187 Faston

Features include:

Flange mounting possible using adaptor with 187 Faston, 4.8 x 0.5 mm connections

AC or DC coil

Lockable test button and mechanical indicator

Cadmium-free contacts (standard version)

Contact material options

For use with 96 Series sockets

For use with 99 Series coil indication and EMC suppression modules

Commercial Description

Miniature power relay 12A with 2 pole changeover contacts for plug-in mount on 96 Series sockets. Flange mount option using adaptor, with 187 Faston, 4.8 x 0.5 mm connections AC or DC coil Lockable test button and mechanical indicator.

Contact configuration: 2 pole, CO (2PDT)

Dimensions: 20.7x37.2x27.7 mm

Electrical life: 100000 cycles

Insulation coil/contacts: 4 kV

Coil Supply: DC

Nominal voltage: 6 upto 220V

Rated contact voltage: 250 V AC

Rated current (contacts): 12A

Technical description

High Power relay,

 Plug-in socket version,

 2 pole, CO (nPDT), 12A, AgNi,

DC coil, 240 V,

 rated power 1.5 VA,

 resistance 19100 Ω,

 consumption 5.3 mA,

must drop-out voltage 20%,

ambient temperature from -40 to +70 °C

NOTE: PLEASE FEEL FREE TO SEND ANY INQUIRY ABOUT YOUR REQUIRMENTS.
