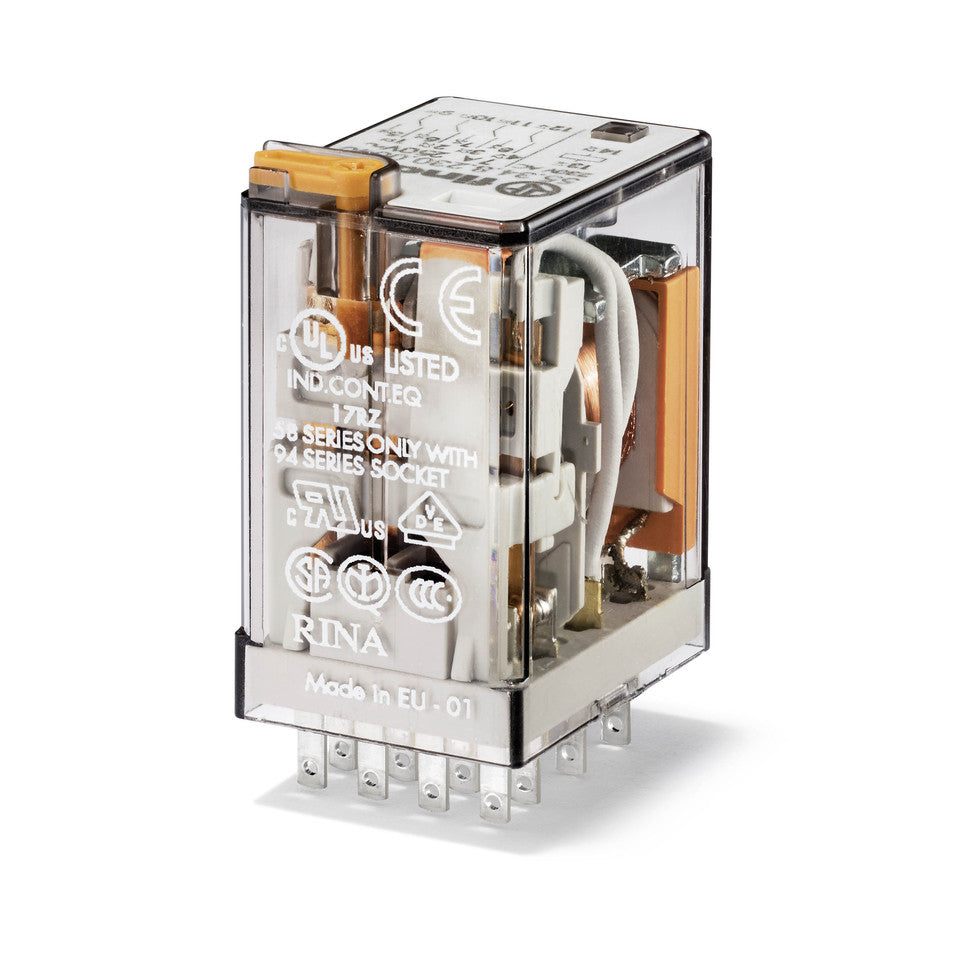

55.33.8 GENERAL PURPOSE TYPE RELAY 11 PIN 3PDT 10A 3-CO COIL VOLTAGE VARIATIONS FROM 6-240VAC BASE TYPE SERIES-94

 Finder’s 55 Series general purpose relay range includes the following features (according to Type):

AC & DC coils

PCB or Plug-in mounting

Available with lockable test button, mechanical flag & LED indicator

Base socket series 94

Commercial Description

General purpose plug-in relays. 2 CO 10 A. For use with 94 Series sockets. AC or DC coil. Lockable test button option and mechanical indicator as standard. Variant with LED and integrated protection circuit

Contact configuration: 3 pole, CO (nPDT)

Dimensions: 20.7x37.2x27.7 mm

Electrical life: 200000 cycles

Insulation coil/contacts: 4 kV

Coil Supply: AC

Nominal voltage: 5 upto 240V

Rated contact voltage: 250 V AC

Rated current (contacts): 10 A

Technical description

Industrial relay,

 Plug-in socket version,

3 pole, CO (3PDT) 10 A, AgNi,

rated power 1.5 VA,

resistance 17000 Ω,

consumption 6 mA,

drop-out voltage 20% approx,

Variant options: Lockable test button + mechanical indicator,

 ambient temperature from: -40 to +85 °C
