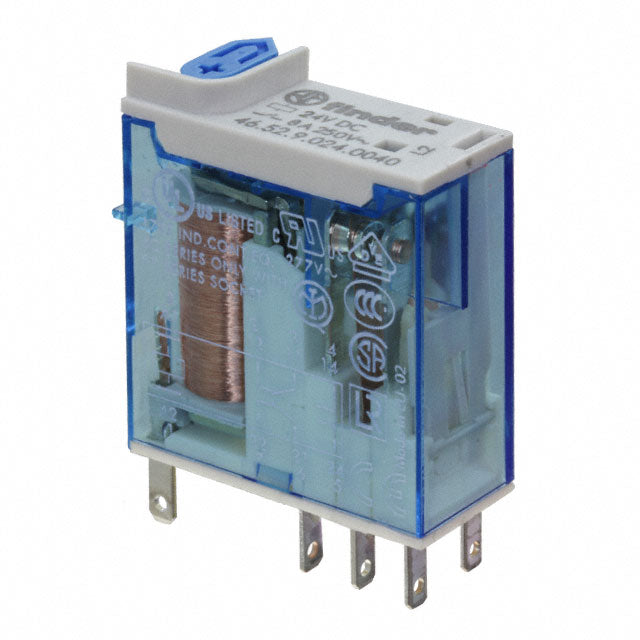

FINDER RELAY 8 PIN DPDT 8A 2-CO SERIES 46.52.9 MINIATURE INDUSTRIAL RELAY COIL VOLTAGE VARIATIONS FROM 12-24VDC BASE TYPE SERIES-97

 The Type 46.52 miniature industrial relay is an industrial power relay for socket mount or direct connection via Faston connectors. 2 changeover 8A and plug-in/solder terminals.

Coil supply voltage DC 12-24V variation available.

Features include:

AC or DC coil

Available with: lockable test button, mechanical indicator and LED

8 mm, 6 kV (1.2/50 μs) insulation between coil and contacts

Cadmium-free contacts

For use with 97 Series sockets, for printed circuit board solder or for 35 mm rail.

Commercial Description

Miniature industrial relay with 2 CO 8A contacts for socket mount or direct connection via Faston connectors. Equipped with AC or DC coil. Available with: lockable test button and mechanical and LED indicator. With Cadmium-free contacts. European patent.

Contact configuration: 2 pole, CO (2PDT)

Dimensions: 12.4x32.8x29 mm

Electrical life: 100000 cycles

Insulation coil/contacts: 6 kV

Coil Supply: DC

Nominal voltage: 12 upto 125V

Rated contact voltage: 250 V AC

Rated current (contacts): 8A

Technical description

Miniature Industrial relay,

Spade/blade solder terminal,

2 pole, CO (nPDT) 8A, AgNi,

rated power 1.2 VA,

resistance 28000 Ω,

consumption 5 mA,

holding voltage 184 V,

must drop-out voltage 20% V,

option: Lockable test button + mechanical indicator,

ambient temperature from -40 to +70 °C
