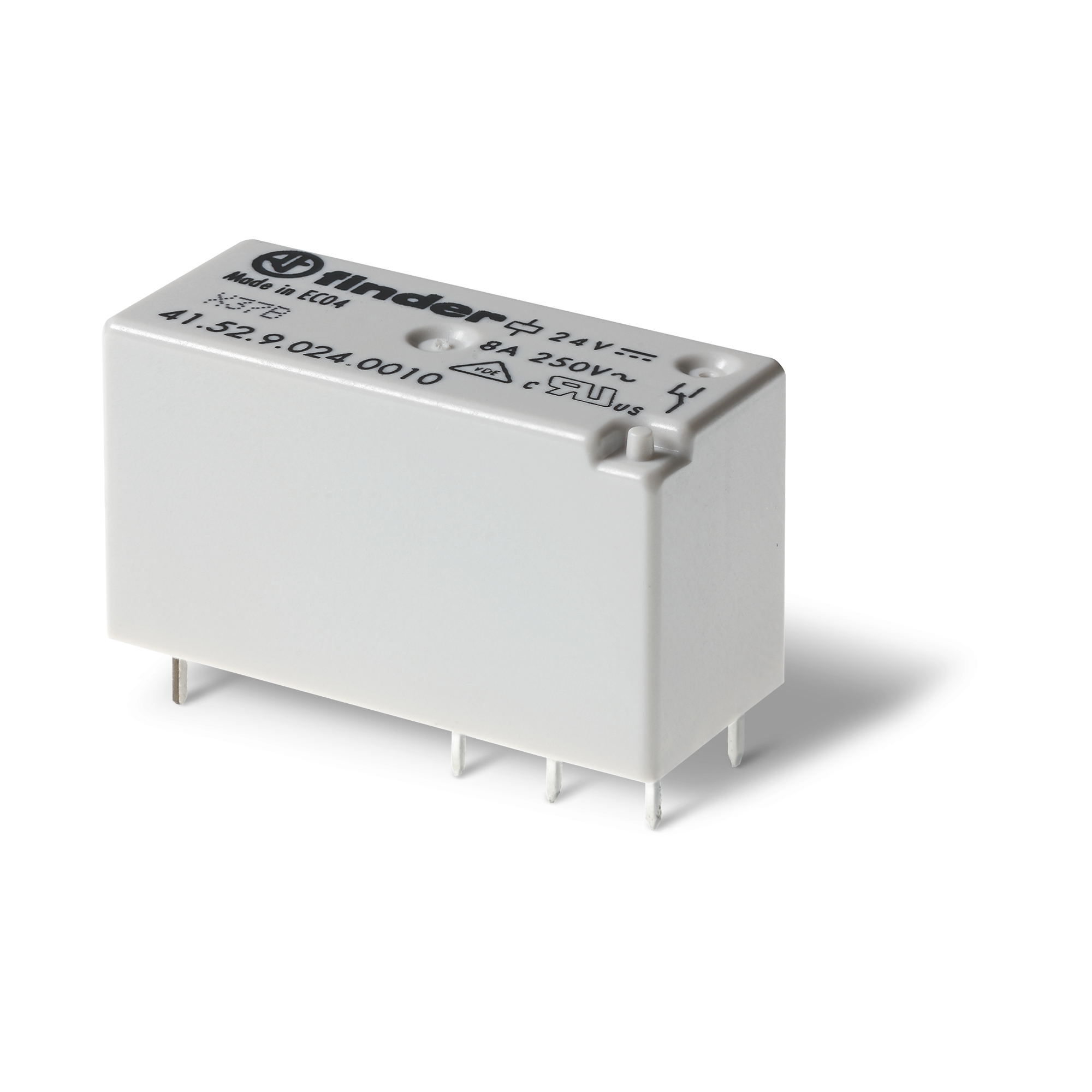

FINDER RELAY 8-PIN SPDT 8A 8-CO SERIES 41.52 SUB-MINIATURE PCB MOUNT RELAY COIL VOLTAGE VARIATIONS FROM 12-24V DC

 Type 41.52 low profile PCB relays, 2 CO 8 A (pin pitch 5.0 mm) for direct PCB mounting or with 93 and 95 Series sockets.

Suitable for direct mount on a printed circuit or via a socket, and for mount on a 35 mm rail (EN 60715) on sockets with box clamp or screwless terminals.

Available version 41.52.6.xxx, 2 pole, 8A, PCB direct mount.

Features include:

AC and DC coil

8 mm, 6 kV (1.2/50 μs) between coil and contacts

Cadmium-free contacts

Flux proof: RT II standard, (also available in RT III version)

Commercial Description

Low profile PCB relay, 2 CO 8 A (5.0 mm pitch), suitable for mounting on PCB or 95 Series sockets. Equipped with AC or DC coil. 8 mm, 6 kV (1.2/50 μs) between coil and contacts. Cadmium-free contacts. Flux-proof: RT II standard, (also available in RT III version).

Contact configuration: 2 pole, CO (DPDT)

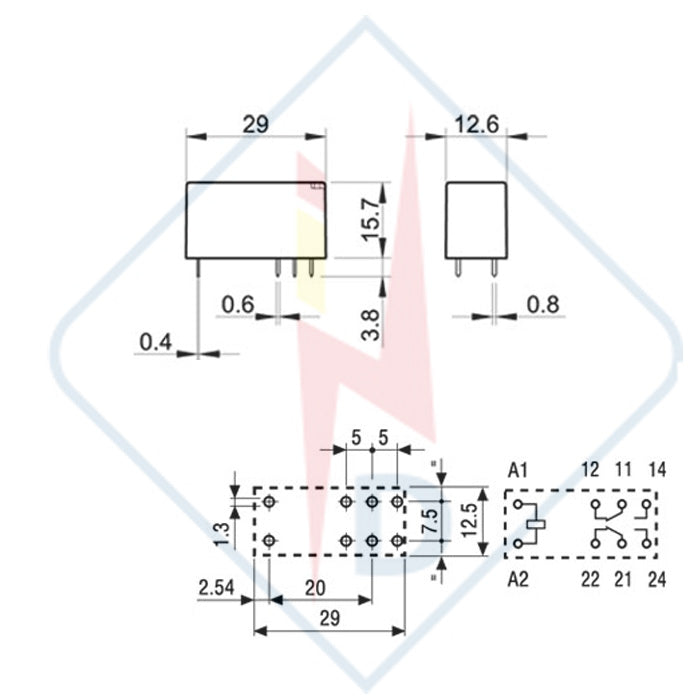

Dimensions: 12.6x15.7x29 mm

Available coil voltage Variations: 12-24 VDC

Electrical life: 30000 cycles

ambient temperature from: -40 to +85 °C

Insulation coil/contacts: 6 Kv

Rated contact voltage: 250 V-AC

Rated current (contacts): 2 A

Supply:  DC sensitive coil

Technical description

Low profile PCB relays, PCB/Plug-in – 5 mm pinning,

2 pole, CO (nPDT), 8A, AgSnO2,

DC coil, 12-24 V,

rated power 0.65 W,

resistance 220 Ω,

ambient temperature from -40 to +85 °C
