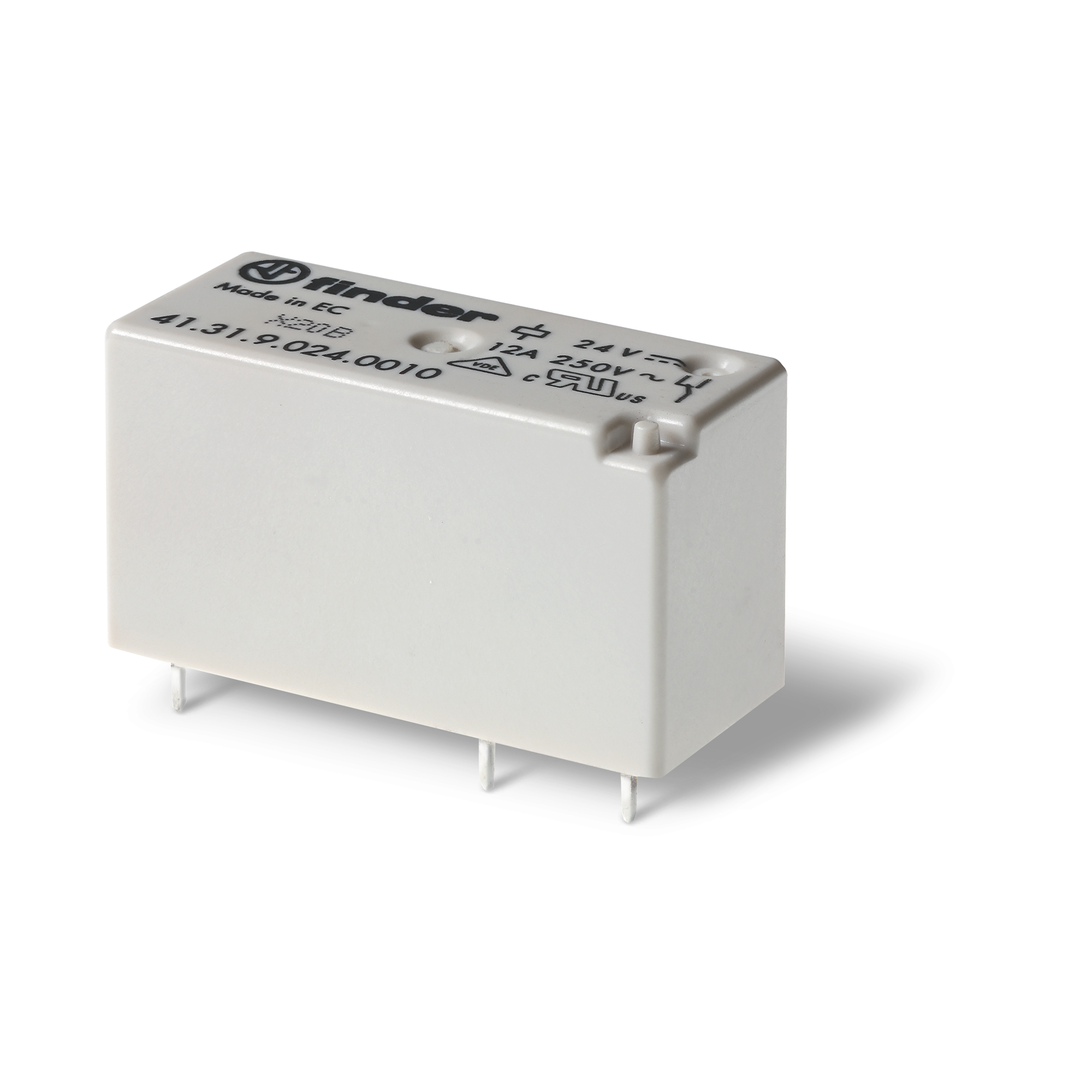

FINDER RELAY 5-PIN SPDT 12A 1-CO SERIES 41.31 SUB-MINIATURE PCB MOUNT RELAY COIL VOLTAGE VARIATIONS FROM 12-24V DC

Type 41.31 Low profile PCB relays, 1 CO 12 A (3.5 mm pin pitch) for direct PCB mounting or with 93 and 95 Series sockets.

Features include:

AC and DC coils

8 mm, 6 kV (1.2/50 μs) between coil and contacts

Cadmium free contacts

Flux proof: RT II standard, (also available in RT III version)

Commercial Description

Low profile PCB relay 1 contact 12 A (3.5 mm pitch), suitable for mounting on PCB or 95 Series sockets. Equipped with AC or DC coil. 8 mm, 6 kV (1.2/50 μs) between coil and contacts. Cadmium-free contacts. Flux-proof: RT II standard, (also available in RT III version).

Contact configuration: 1 pole, CO (SPDT)

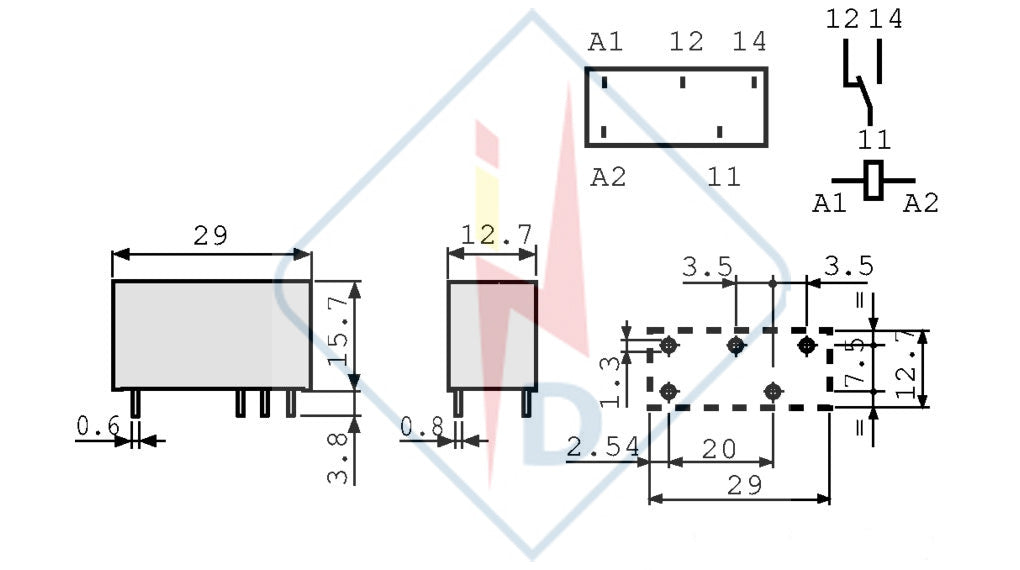

Dimensions: 12.6x15.7x29 mm

Available coil voltage Variations: 12-24 VDC

Electrical life: 60000 cycles

ambient temperature from: -40 to +85 °C

Insulation coil/contacts: 6 Kv

Rated contact voltage: 250 V-AC

Rated current (contacts): 2 A

Supply: DC sensitive coil

Technical description

Low profile PCB relays PCB/Plug-in – 3.5 mm pinning,

1 pole, CO (nPDT) 12 A, AgNi,

 DC coil, 12-24 V,

rated power 0.75 VA,

resistance 350 Ω,

consumption 31.6 mA,

option: Production line 0, version: Flux proof (RT II)

ambient temperature from -40 to +70 °C
