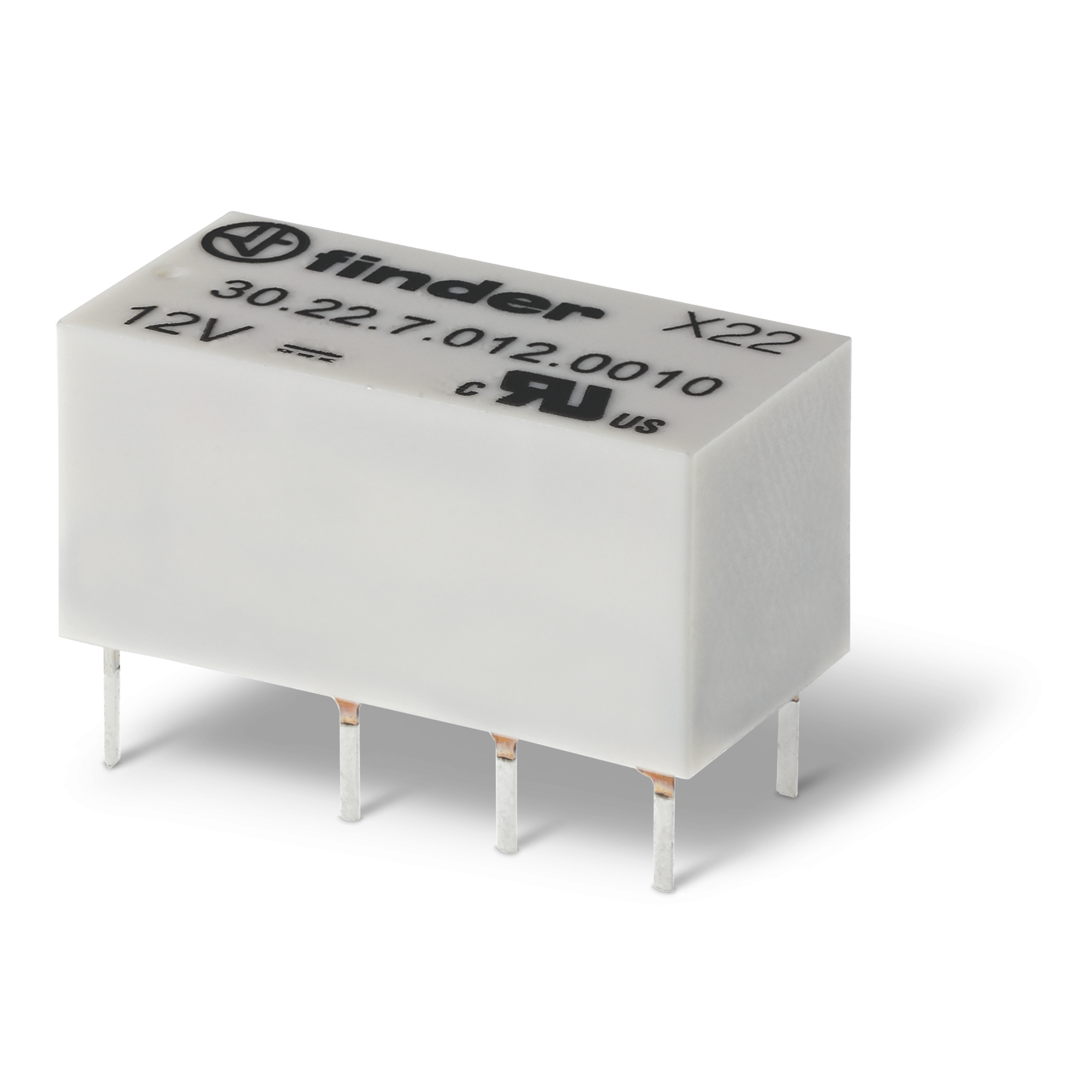

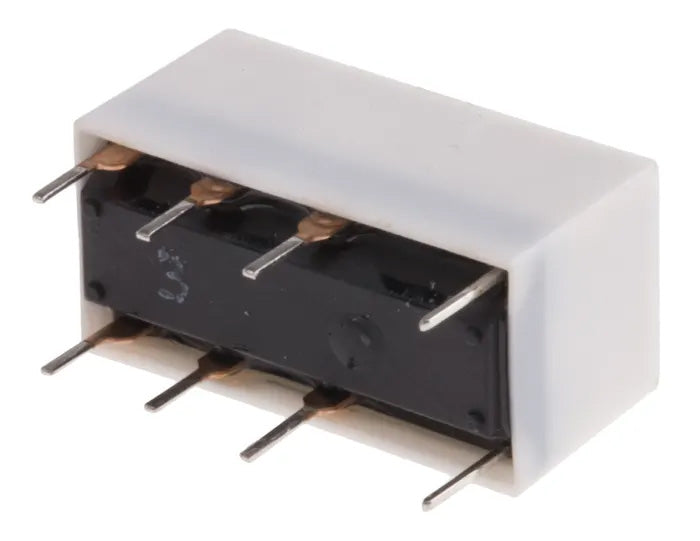

FINDER RELAY 8-PIN DPDT 2A 2-CO SERIES 30.22 SUB-MINIATURE DUEL IN LINE PCB MOUNT RELAY COIL VOLTAGE VARIATIONS FROM 12-24V DC

 Type 30.22 subminiature dual in line relays for PCB mounting with gold plated contacts for assured switching of low level signals, and low coil consumption.

Features include:

2 changeover contacts for switching low loads

Subminiature relay in the standard DIL outline and form

Sensitive DC coil – 200 mW

Washable: RT III

Cadmium-free contacts.

Commercial description

Subminiature dual-in-line relay for PCB mounting with gold plated contacts for assured switching of low level signals, and low coil consumption.

Contact configuration: 2 poles, CO (DPDT)

Dimensions: 10.1x11.4x20.3 mm

Available coil voltage Variations: 24 VDC

Electrical life: 100000 cycles

ambient temperature from: -40 to +85 °C

Insulation coil/contacts: 6 Kv

Rated contact voltage: 250 V-AC

Rated current (contacts): 2 A

Supply: DC sensitive coil

Technical description

Subminiature DIL relays PCB mount,

 2 pole, CO (nPDT) 2 A, AgNi + Au,

DC sensitive coil,

rated power 0.2 W,

resistance 180 Ω,

consumption 33 mA,

version: Wash tight (RT III),

ambient temperature from -40 to +85 °C
